How Do Gear Reducers Work?

In today's advanced machinery and industrial systems, the importance of mechanical transmission cannot be overstated. Whether it's a motor, a conveyor belt, or a production line, the transfer of energy from one part of a system to another is a crucial component. One essential piece in this process is the gear reducer. It acts as a bridge between the motor and the load, adjusting speed and torque to suit the needs of the application. In this blog, we will explore the inner workings of gear reducers, their components, and how they contribute to the performance and efficiency of industrial machinery.

Internal Components of Gear Reducers

A gear reducer is a mechanical device that reduces the speed of an input shaft while simultaneously increasing the torque. It typically consists of several key components that work together to achieve these objectives.

Input and Output Shafts: These are the primary components of a gear reducer, where power enters and exits the system. The input shaft is connected to the motor, while the output shaft connects to the machinery that requires reduced speed and increased torque.

Gear Arrangements: The gears inside a gear reducer are what make the magic happen. Several types of gear arrangements can be used, including:

Spur Gears: These gears are simple and provide a direct, straight-cut engagement, typically used for low-speed applications.

Helical Gears: These gears feature teeth that are angled and offer smoother engagement than spur gears, making them ideal for higher speeds.

Bevel Gears: These gears are used to change the direction of the shaft’s rotation, usually at a right angle.

Worm Gears: Worm gears are used when large speed reductions are needed in compact spaces.

Enclosure and Bearings: The entire gear mechanism is housed in an enclosure that protects the gears from dirt, moisture, and debris. Bearings support the shafts, allowing them to rotate smoothly and efficiently.

The Mechanism of Speed Reduction

One of the primary functions of a gear reducer is to reduce the speed of the input while increasing the torque. The amount by which the speed is reduced is determined by the gear ratio.

Gear Ratio Explanation: A gear ratio refers to the ratio between the number of teeth on two meshing gears. For example, in a 10:1 gear ratio, the input gear (connected to the motor) has 10 times as many teeth as the output gear. This means the speed of the output shaft will be 1/10th that of the input shaft, while the torque will be 10 times greater. In other words, the gear reducer converts rotational speed into greater force, which is essential for applications that require heavy lifting or high torque.

Step-by-step Reduction Process: The process of speed reduction in a gear reducer happens gradually, with each stage of gears in the system contributing to the final output. As the motor turns the input shaft, the gears inside the reducer mesh with each other, transferring energy from one gear to another. Each pair of gears in the sequence decreases the speed of the input shaft while increasing the torque. This gradual reduction allows the gear reducer to efficiently control speed and force for precise movement in heavy machinery.

Torque Conversion and Load Handling

The conversion of torque is one of the key benefits of gear reducers. By reducing the speed and increasing the torque, a gear reducer allows machinery to handle heavier loads with more control.

Mechanical Advantage: The mechanical advantage of a gear reducer comes from the gear ratio. A higher ratio means more torque and less speed, which can be beneficial for applications where power is more important than speed, such as in heavy-duty machinery. The mechanical advantage is directly related to the gear configuration, allowing manufacturers to choose a setup that best suits their needs.

Trade-off Between Speed and Force: When using a gear reducer, there is often a trade-off between speed and force. Reducing speed results in an increase in force, which is why gear reducers are ideal for situations where power and torque are more important than speed. This trade-off is essential in heavy-duty machinery that requires high torque to lift, move, or manipulate heavy loads.

Benefits in Heavy-Duty Equipment: Gear reducers are commonly used in heavy-duty machinery and equipment, including mining, construction, and material handling industries. The increased torque enables machines to perform tasks like lifting large weights or operating machinery with heavy resistance, without overloading the motor or other components. This makes gear reducers an integral part of industries that require robust and reliable equipment.

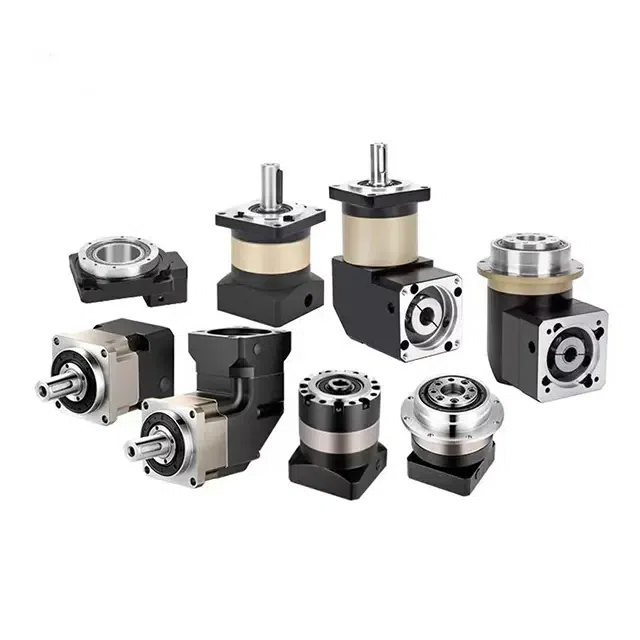

Common Configurations

There are several configurations of gear reducers, each suitable for different applications. Understanding these configurations is key to choosing the right gear reducer for your machinery.

Inline vs Right-Angle Gear Reducers: The most common types of gear reducers are inline and right-angle. Inline gear reducers have input and output shafts that are aligned in the same direction, making them ideal for linear motion applications. Right-angle gear reducers, on the other hand, have shafts that are positioned at a 90-degree angle to each other, which is often required in applications that involve changes in direction, such as conveyor systems or industrial equipment.

Planetary Gear Reducers: Planetary gear reducers are a specialized type of gear reducer known for their compact design and high torque output. These reducers are ideal when space is limited, but high power is still required. The design features a central “sun” gear, surrounded by “planet” gears that orbit around it. This design provides excellent load distribution and high efficiency, making it popular in robotics, automotive, and other compact systems.

Choosing the Right Model: When selecting a gear reducer, it is important to consider factors such as the required torque, speed reduction, and available space. For example, in high-torque applications, planetary gear reducers might be preferred due to their compact nature and high power output. On the other hand, for simple, low-speed applications, a standard inline gear reducer might be more appropriate.

Conclusion

In conclusion, gear reducers are a critical component in modern machinery and industrial systems. Their primary function is to reduce speed and increase torque, making them ideal for applications that require high power and precision. With a variety of configurations and gear arrangements to choose from, it is essential to select the right gear reducer based on the specific needs of the application.
