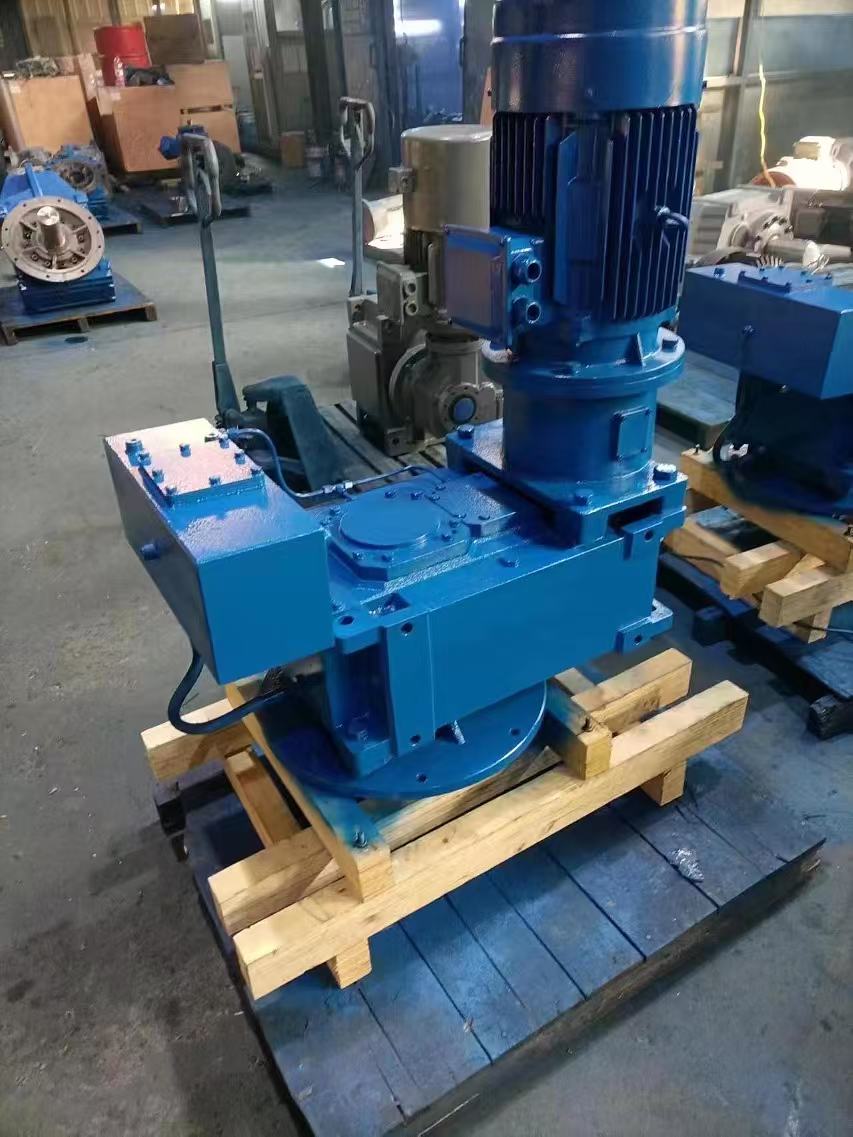

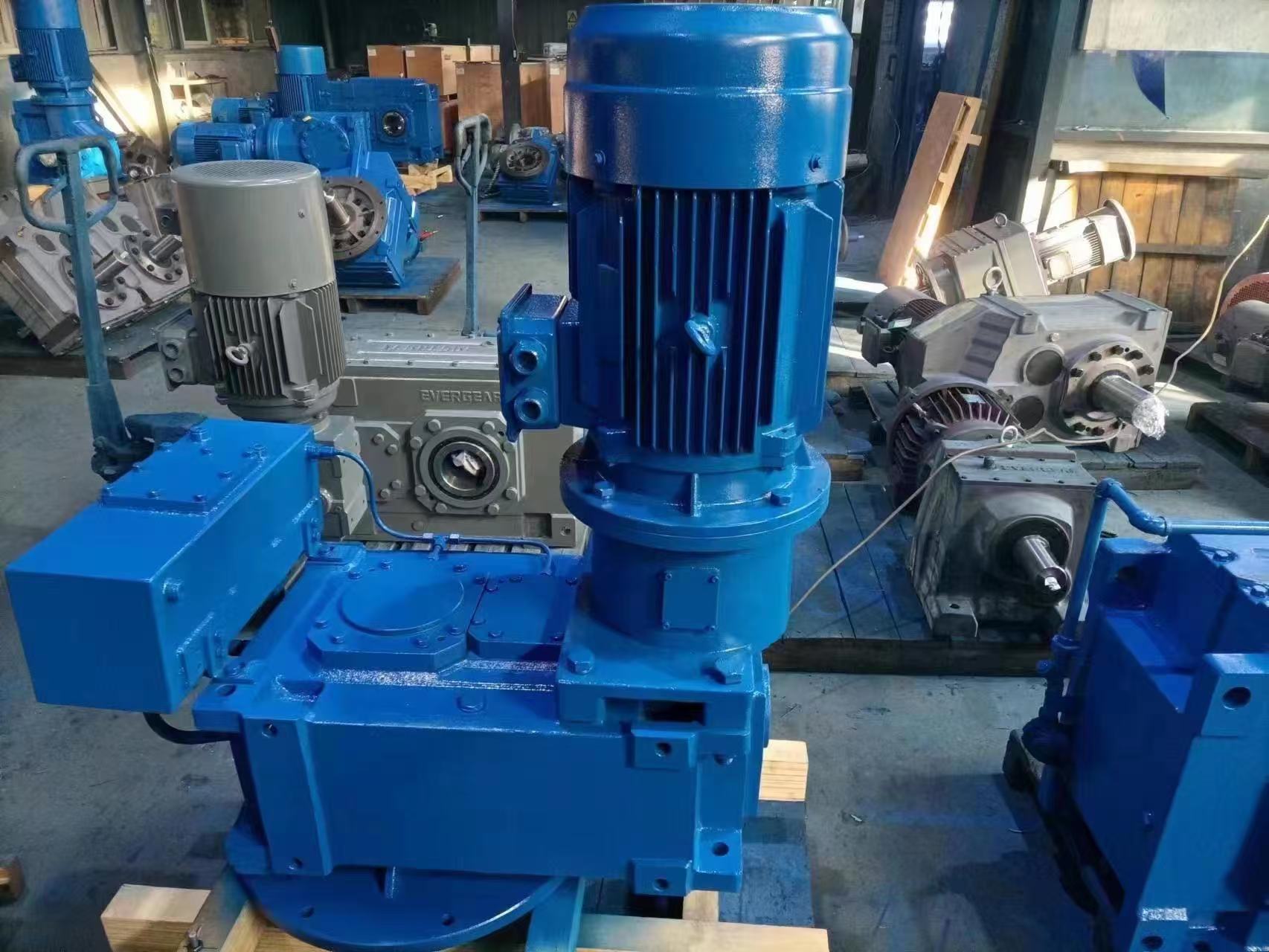

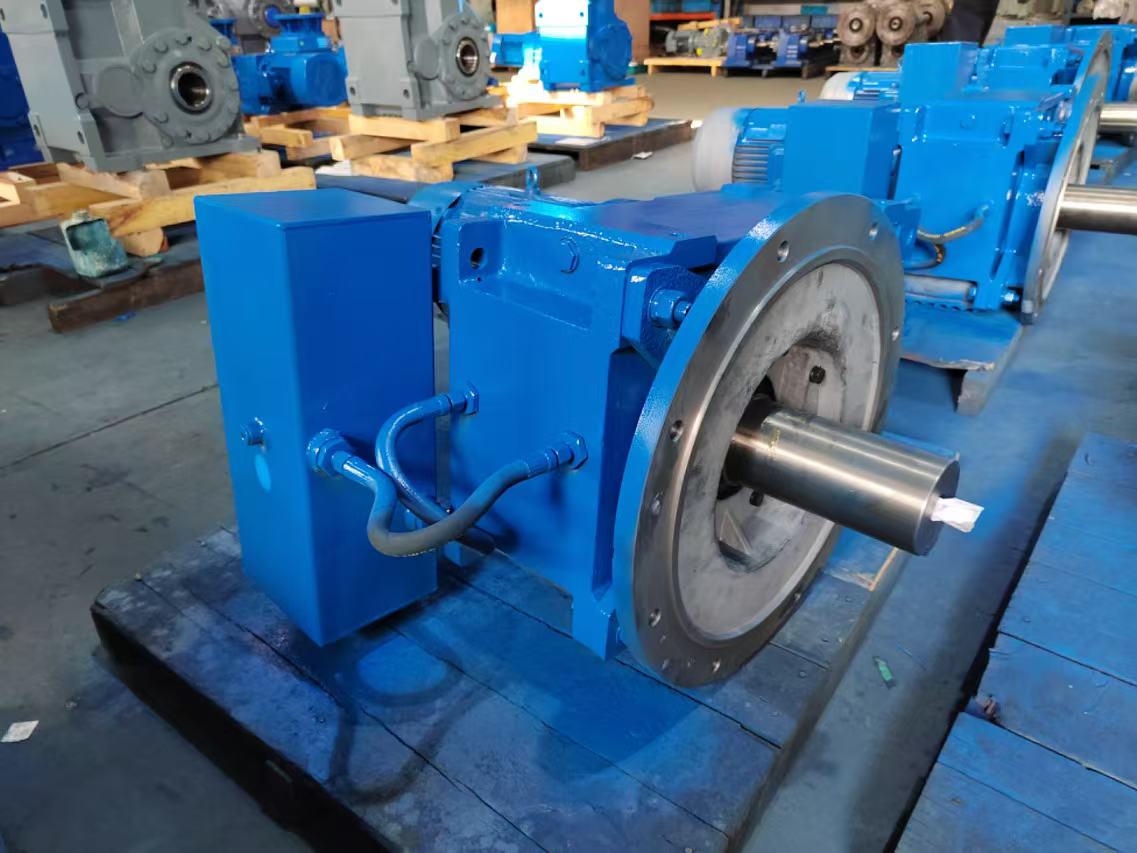

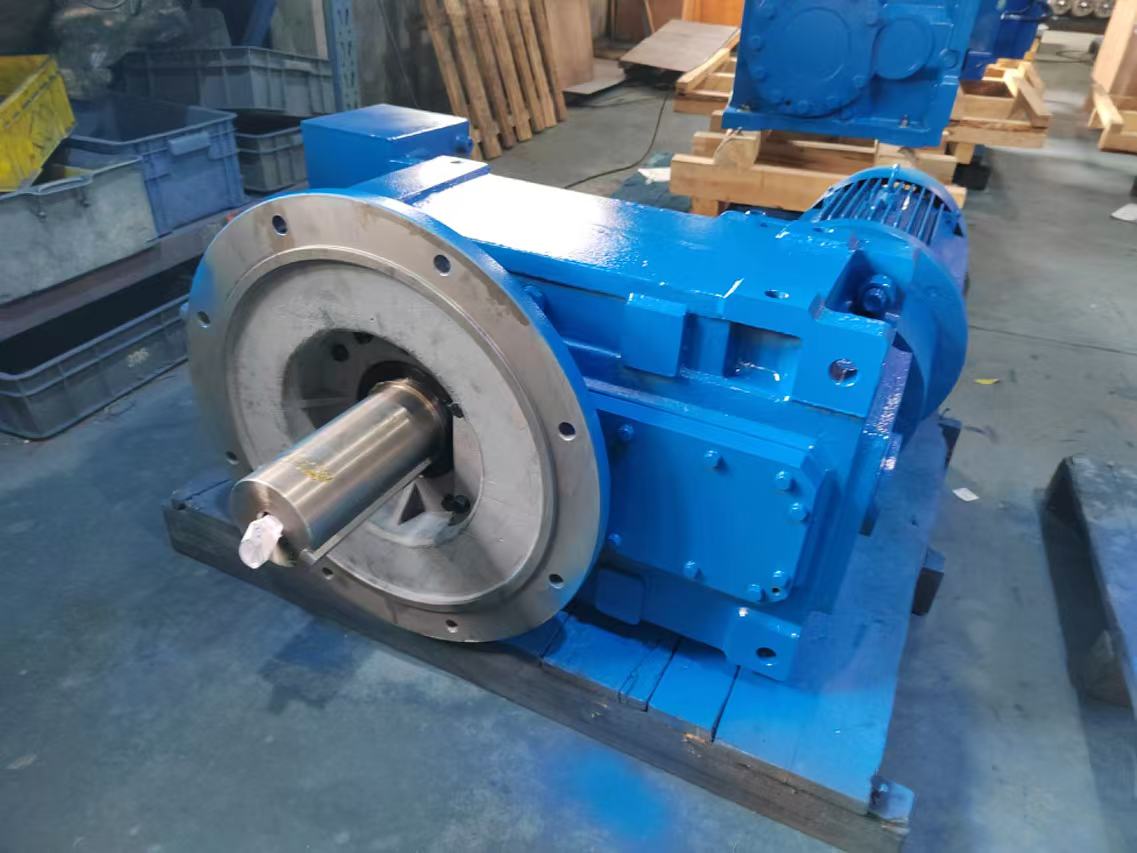

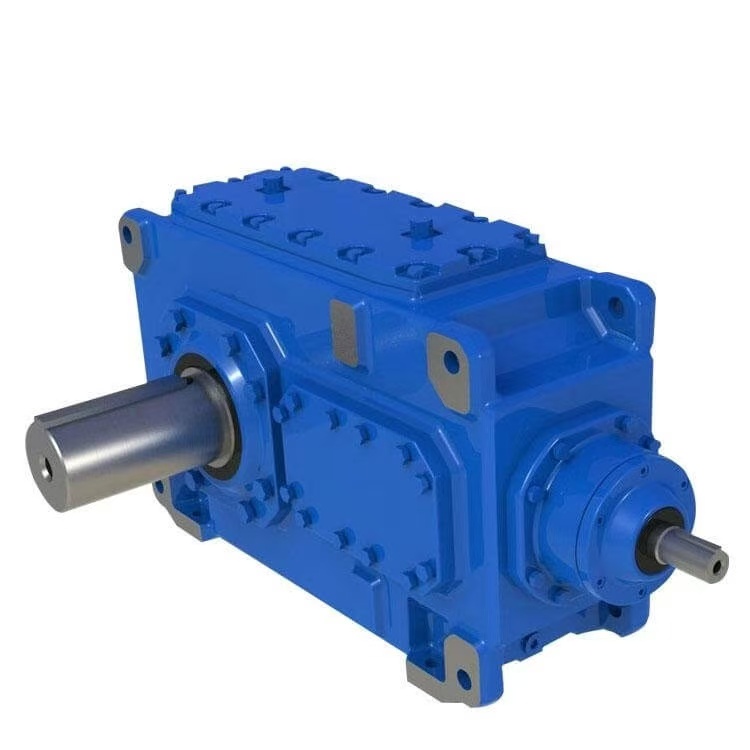

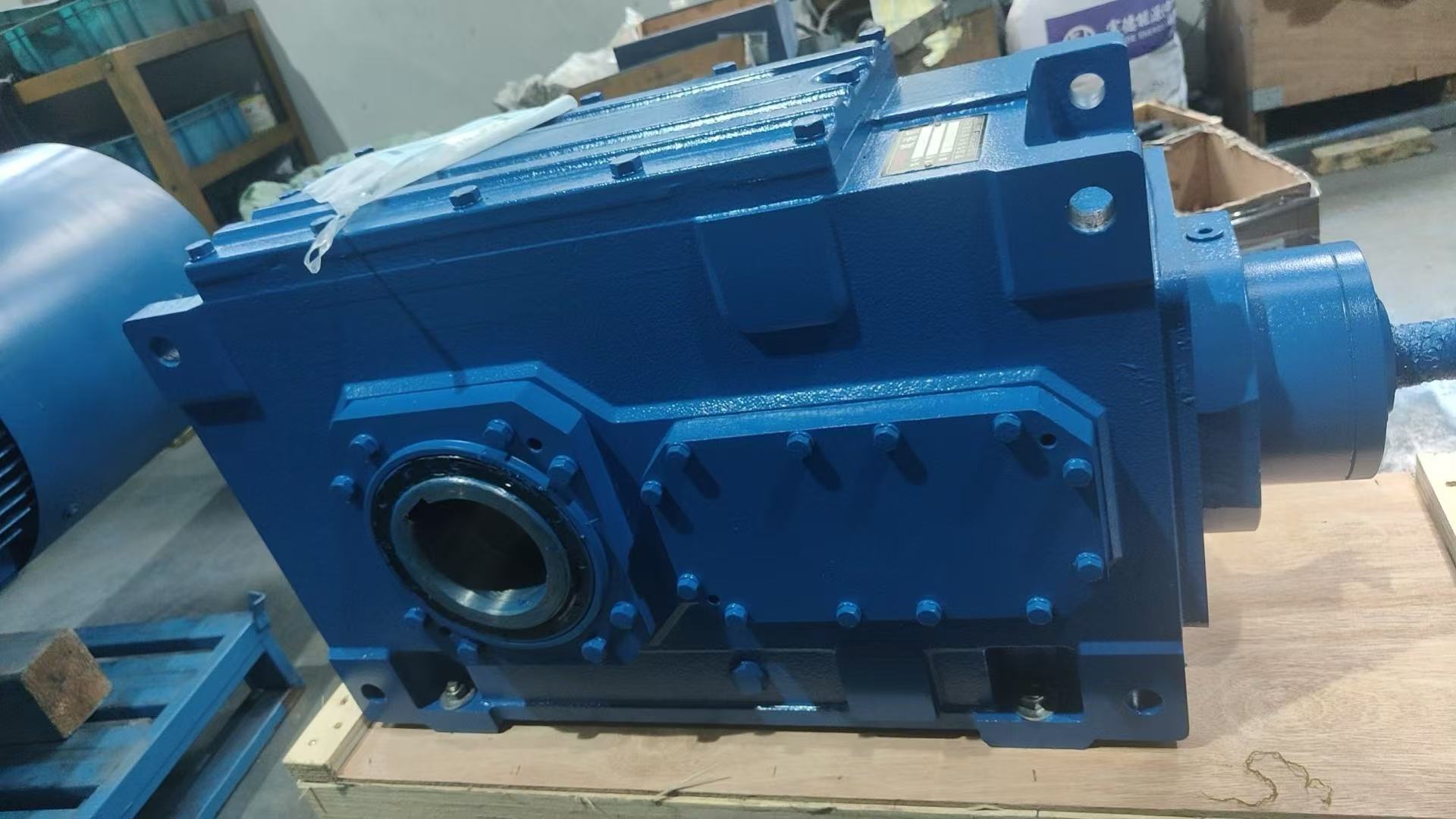

HB Series Industrial Gear Boxgear Box

H/B series high-power reducer adopts a general design scheme, can be transformed into a professional gearbox according to customer requirements.
Advantages: It can save space, reliable and durable, high overload capacity, low energy consumption, superior performance, deceleration efficiency of more than 95%, small vibration, low noise, gear surface by high-frequency heat treatment, after precision machining, formed a helical gear, bevel gear, compact structure, small size, stable work, wide selection of output speed, strong versatility. H/B series high-power reducer adopts a general design scheme, can be transformed into a professional gearbox according to customer requirements.

Availability:

Quantity:



Inquire Add to Basket

Model:
H1SH3 H1SH5 H1SH7 H1SH9 H1SH11 H1SH13 H1SH15 H1SH17 H1SH19 H2SH4 H2SH5 H2SH6 H2SH7 H2SH8 H2SH9 H2SH10 H2SH11 H2SH12 H2SH13 H2SH14 H2SH15 H2SH16 H2SH17 H2SH18 H2SH19 H2SH20 H3SH5 H3SH6
Brand:
HUAKE

Product Description

Performance characteristics:

1, H/B standard industrial gear box adopts sound absorption box body structure, large box surface area and large fan, cylindrical gear and spiral bevel gear are grinding process, so that the temperature rise of the whole machine, reduce noise, improve the reliability of operation, and increase the transmission power.

2, the industrial gearbox adopts a general design scheme to achieve parallel axis, vertical axis general box, parts types are reduced, specifications and models are increased.

3, the gearbox has 3 ~ 26 specifications, the deceleration transmission series has 1 ~ 4 levels, the speed ratio is 1.25 ~ 450.

4, installation method: base installation, hollow shaft installation, swing base installation, torque arm installation.

5, input mode: motor coupling flange, shaft input.

6. Output mode: solid shaft with flat key, hollow shaft with flat key, hollow shaft with expansion disc connection, hollow shaft with spline connection, solid shaft with spline connection and solid shaft with flange connection.

7, can be equipped with backstop according to customer requirements. And R, K series combination to get a greater speed ratio.

Technical parameters:

Speed ratio range: H series 1.25 ~ 450, B series 5 ~ 400

Torque range: H series 2 ~ 900 kNm, B Series 5.8 ~ 900 kNm

Power range: H series 4 ~ 5000 kW, B series 2.8 ~ 3000kW

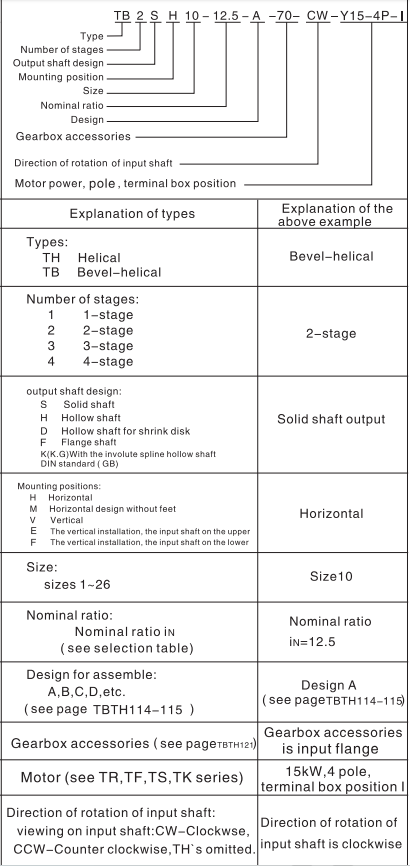

HB英文型号
