What Are The Main Types of Gear Reducers And Their Unique Features?

In today’s fast-paced industrial landscape, machinery performance depends heavily on precision, efficiency, and reliability. One often overlooked yet critical component that plays a key role in optimizing these qualities is the gear reducer. A gear reducer, also known as a speed reducer, is a mechanical device designed to reduce the speed of an input power source while increasing the torque output. By converting high-speed, low-torque input into low-speed, high-torque output, gear reducers ensure machinery can operate at the proper speed and power levels.

Gear reducers are indispensable in a variety of industries. From robotic arms in manufacturing plants to conveyors in logistics centers, from mining operations to beverage bottling lines, gear reducers are working quietly behind the scenes to provide smooth, controlled power. Their ability to reduce wear and tear on motor systems, lower energy consumption, and enhance precision make them a vital investment for any machinery-based operation.

What Are the Major Types of Gear Reducers?

The gear reducer family is vast and varied, each type suited for particular applications and operational requirements. Understanding the main types of gear reducers is essential for selecting the right solution for your equipment.

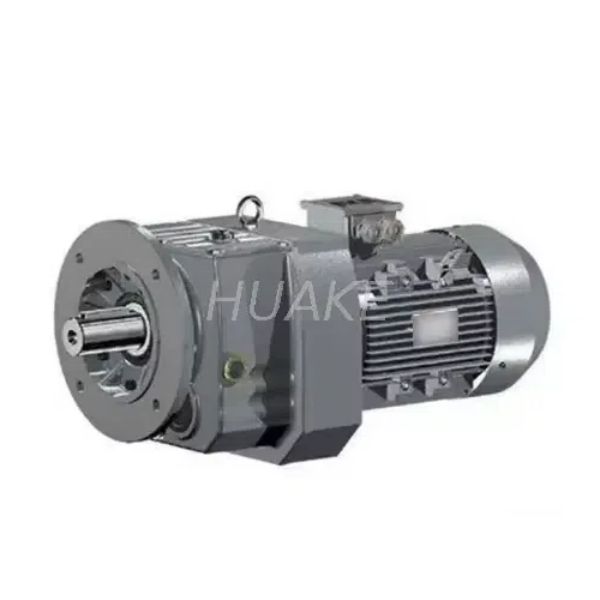

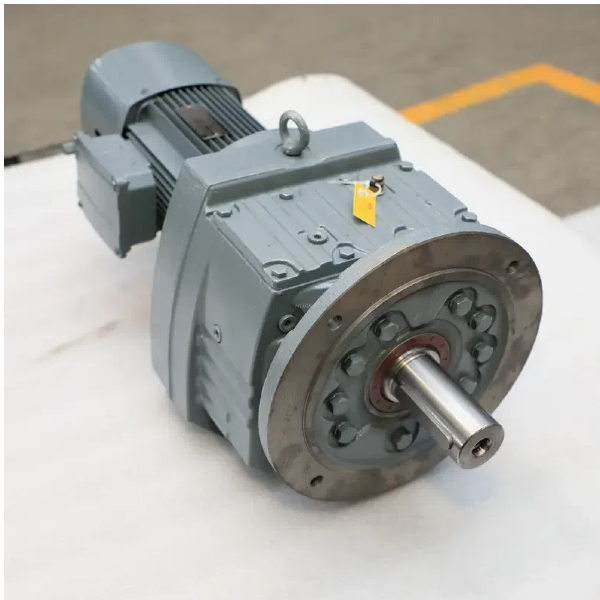

Helical Gear Reducer

Helical gear reducers are known for their efficiency and smooth operation. The gears are cut at an angle, which allows them to gradually engage, resulting in less noise and vibration. They are ideal for high-load applications and are commonly used in conveyors, crushers, and large industrial mixers.

Bevel Gear Reducer

Bevel gear reducers utilize conically shaped gears to transmit motion between intersecting shafts, typically at a 90-degree angle. Their compact design and ability to handle angular motion make them perfect for equipment where space is limited, such as in packaging machines or printing presses.

Worm Gear Reducer

Worm gear reducers feature a worm (screw) meshing with a worm gear. They provide very high torque output in a compact design and are naturally self-locking, which can be a safety advantage. These reducers are frequently used in lifting systems, gates, and conveyor belts.

Planetary Gear Reducer

Planetary gear reducers are known for their high torque density and efficiency. They consist of a central sun gear, multiple planet gears, and an outer ring gear. This arrangement allows the load to be distributed across multiple points, making them ideal for compact applications requiring high precision, such as robotics and automation.

Cycloidal Gear Reducer

Cycloidal gear reducers offer excellent shock-load resistance and are designed for applications requiring precision and durability. Their unique mechanism allows for smooth torque transmission and high positional accuracy, making them ideal for servo-driven machinery and heavy-duty industrial automation.

What Makes Each Type Unique?

While gear reducers share a common function, their internal designs vary significantly, offering different benefits based on structure and performance.

Helical Gear Reducers: Favorable for continuous operation and heavy loads due to high contact ratio; quieter and more efficient than spur gears. However, they may require more axial space.

Bevel Gear Reducers: Provide precise motion in a compact, angular layout; suitable for tight spaces but may require more complex alignment during installation.

Worm Gear Reducers: Self-locking feature is beneficial for lifting and hoisting applications; lower efficiency due to sliding contact may generate more heat.

Planetary Gear Reducers: Excellent torque-to-weight ratio, compact footprint, and high efficiency; often more expensive and require precise manufacturing.

Cycloidal Gear Reducers: Robust under shock load, minimal backlash, and long service life; may be heavier and more complex to assemble than conventional gear types.

Each gear reducer brings a distinct combination of advantages and trade-offs. The best choice depends on the specific mechanical needs and operational environment of the application.

How to Match the Right Gear Reducer to Your Application?

Choosing the correct gear reducer is not just a technical decision—it’s a strategic one. A well-matched gear reducer can improve efficiency, reduce maintenance costs, and extend machinery lifespan.

Load Requirements: Consider the torque and speed required by the application. Heavy-duty machinery may require planetary or cycloidal types, while lighter systems may work efficiently with helical or bevel options.

Mounting Configuration: Determine whether the reducer will be mounted horizontally, vertically, or at an angle. Some designs are more adaptable to specific orientations.

Space Limitations: Compact machinery setups may benefit from planetary or bevel gear reducers, which offer high performance in a small form factor.

Operational Environment: Exposure to dust, moisture, or chemicals may necessitate sealed or corrosion-resistant models.

Budget and Maintenance: Evaluate the total cost of ownership, including initial cost, maintenance frequency, and energy consumption.

Working with an experienced manufacturer like HUAKE can help streamline the selection process. Our technical support team can assist in evaluating your operational requirements and recommending the optimal gear reducer model.

How Are Modern Innovations Enhancing Gear Reducer Design?

Gear reducer technology is evolving rapidly, responding to demands for greater efficiency, compactness, and intelligence. Modern innovations are transforming traditional gear reducer designs in several important ways:

Advanced Materials: Lightweight yet durable materials such as aluminum alloys and heat-treated steel are reducing the overall weight and improving wear resistance.

Compact Integration: The trend toward space-saving designs includes integrated motor-reducer units and modular assemblies that allow for easy installation and reduced footprint.

Smart Diagnostics: With the rise of Industry 4.0, gear reducers are now being equipped with sensors for real-time monitoring of temperature, vibration, and wear. This allows for predictive maintenance and reduces unexpected downtimes.

Energy Efficiency: New lubrication systems, tighter manufacturing tolerances, and gear optimization techniques are all contributing to lower energy consumption and reduced operational costs.

By adopting these innovations, companies can stay competitive while maintaining optimal machinery performance.

Conclusion

Understanding the different types of gear reducers—and the unique advantages each type offers—is critical for making informed decisions in machinery design and procurement. Whether you're optimizing a production line or designing a new system, the right gear reducer can have a profound impact on performance, longevity, and overall efficiency.

At Qingdao Chinese Science Machinery Co., Ltd. (HUAKE), we offer a wide range of high-quality gear reducers designed to meet the demanding needs of industries such as mining, packaging, beverage, and chemical processing. Each product is backed by advanced design expertise and rigorous quality control to ensure reliable performance across diverse applications.

Need help finding the right gear reducer for your equipment?
Our experts are ready to assist. Contact us today for a personalized consultation or to explore our latest product catalog.
