Engineers constantly seek reliable ways to redirect mechanical power in tight spaces. Bevel Gear Reducers provide a highly efficient solution for this exact challenge. They operate as engineered mechanical devices designed to transmit power at a 90-degree angle while decreasing input speed and multiplying torque.
Transitioning power around tight corners in industrial machinery often forces a difficult compromise. You must balance strict space constraints against transmission efficiency and upfront hardware costs. Failing to choose the optimal configuration can lead to premature shaft misalignment and unacceptable energy loss. Modern machinery demands precise, durable components to maintain peak operational output.
This guide unpacks the core mechanics and structural variations of these dynamic drive units. We evaluate objective trade-offs to help engineering and procurement teams validate component selection. You will learn how to match specific gear configurations to rigorous application demands.
High Efficiency: Premium spiral bevel models routinely achieve 94%–98% power transmission efficiency.
No Self-Locking: Unlike worm gears, bevel gearboxes are highly susceptible to back-driving and require secondary braking in vertical applications.
Configuration Flexibility: Available in L-Drive (2-axis) and T-Drive (3-axis) setups, supporting counter-rotating and bidirectional power routing.
Hidden Load Resilience: Selection must account for overhung, axial, and moment loads, not just output torque, to prevent premature shaft misalignment.
To fully utilize a Right Angle Gear Reducer, you must understand its internal architecture. The foundational principle relies on an intersecting axis design. This geometry allows shafts to transfer motion smoothly across a 90-degree bend. More importantly, it permits bidirectional rotation. You can reverse the motor direction without sacrificing torque density or risking structural damage.
Manufacturers typically machine internal gears in two distinct profiles: straight-cut and spiral-cut. Each profile serves a specific industrial purpose.
Straight-Cut: These gears feature straight teeth cut along the axis. They remain highly cost-effective for low-speed applications. However, they engage abruptly. This sudden contact makes them prone to higher vibration and audible noise.
Spiral-Cut: These gears feature slanted, curved teeth. They deliver a much higher meshing ratio. The teeth engage gradually, creating smoother power delivery. This gradual tooth contact results in lower backlash, frequently measuring between 10 and 30 arcminutes. They significantly reduce acoustic noise, even at high speeds approaching 3,000 RPM.
| Feature | Straight-Cut Bevel Gears | Spiral-Cut Bevel Gears |
|---|---|---|
| Tooth Engagement | Abrupt and instantaneous | Gradual and continuous |
| Noise Levels | High (especially at high speeds) | Very low (quiet operation) |
| Backlash Tolerance | Moderate to high | Extremely low (<10 to 30 arcminutes) |
| Vibration | Noticeable under heavy loads | Minimal due to high meshing ratio |
The materials forming the gearbox dictate its ultimate performance ceiling. Designers must balance weight restrictions against raw durability. For mass-sensitive applications, lightweight anodized aluminum housings provide excellent protection. They resist mild corrosion while keeping overall machine weight low. Conversely, heavy-duty applications demand hardened stainless steel internal gears. Stainless steel prevents premature wear during high-torque, continuous operation.
Best Practice: Always match the housing material to the operating environment. Specify aluminum for robotic arms where weight matters. Select stainless steel for harsh, high-impact industrial zones.
Engineers often debate between bevel gears and worm gears for 90-degree power transmission. Both achieve a right-angle turn, but their mechanical philosophies differ vastly. Understanding these differences prevents catastrophic design failures.
Bevel gears deliver exceptional low-friction power transfer. High-end spiral configurations routinely achieve up to 98% efficiency. They transfer almost all motor power directly to the load. Worm gears operate differently. They rely on sliding friction between the worm shaft and the worm wheel. This sliding action generates immense heat. Consequently, worm gears lose significant energy, often dropping below 70% efficiency at high ratios.
Standard worm gears offer inherent resistance to back-driving. When you reach a reduction ratio of 40:1 and above, a worm gear essentially self-locks. The output shaft cannot drive the input shaft backward. This provides passive safety for lifting applications.
Crucial Caveat: Right angle bevel gear reducers do not self-lock. Their high efficiency means they back-drive easily. If your application requires strict position holding upon motor shutdown, you must integrate external braking mechanisms. Relying on a bevel unit to hold a vertical load will result in immediate system failure.
Because they eliminate sliding friction, bevel gear reducers generally run much cooler. Superior thermal management naturally extends their operational lifespan. They endure continuous duty cycles without degrading internal lubricants. Worm drives, battling constant heat generation, often require more frequent maintenance and oil changes.
| Performance Metric | Bevel Gear Technology | Worm Gear Technology |
|---|---|---|
| Transmission Efficiency | Up to 98% | 50% – 85% (drops at high ratios) |
| Thermal Output | Low (runs cool) | High (sliding friction generates heat) |
| Self-Locking Capability | None (easily back-driven) | Yes (typically at 40:1 ratios or higher) |
| Duty Cycle Suitability | Continuous, 24/7 operation | Intermittent operation preferred |
Mechanical layouts rarely follow a simple straight line. Designers rely on flexible gear configurations to navigate tight machine frames. You can select specific drive path architectures to match complex motion requirements.
L-Drives represent the standard 90-degree redirection. They utilize two intersecting axes. They fit perfectly into space-constrained footprints. You will find them available in various mounting styles, including shaft-to-bore and bore-to-bore connections. They serve as the backbone for basic conveyor routing and packaging machinery.
When you need to split power, T-Drives offer an elegant solution. A T-Drive features a single continuous input shaft. This shaft passes entirely through the unit to drive two opposed output shafts. It perfectly synchronizes two distinct machine sections from a single motor source.
Advanced machinery sometimes requires mirrored motion. Manufacturers offer specialized T-Drive configurations where the two output shafts rotate in opposite directions. This counter-rotating setup proves ideal for synchronized dual-sided machinery. It eliminates the need for complex, secondary reversing linkages.

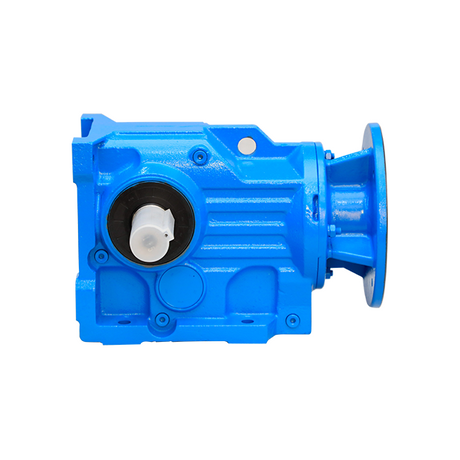

Standard bevel gears usually max out around a 3:1 or 4:1 ratio per stage. To achieve higher ratios, manufacturers build multi-stage gear sets. They combine an initial helical gear stage with a secondary bevel stage. This hybrid approach pushes reduction ratios up to 24:1. Amazingly, it maintains a compact vertical profile. You gain immense torque without expanding the physical machine footprint.
Common Mistake: Specifying a single-stage unit when you actually need high torque at slow speeds. Always consider a multi-stage helical-bevel unit to keep the profile low while hitting your ratio target.
Selecting the correct reducer requires strict engineering discipline. Guesswork leads to immediate mechanical binding or long-term component degradation. Follow this precise five-step framework to validate your choice.
Step 1: Operation Profiling. First, categorize your motion profile. Distinguish clearly between manual adjustment setups, intermittent cycling, and continuous high-speed motor-driven operation. Continuous operation demands better thermal dissipation and superior bearings.
Step 2: Performance Parameters. Map your exact input and output thresholds. Document the required input torque from the motor. Calculate the necessary output torque for the load. Identify your maximum RPM tolerances and determine the precise gear ratio needed to achieve target speeds.
Step 3: Hidden Load Verification. Engineers often calculate output torque but ignore hidden forces. You must calculate the triad of external forces. Evaluate overhung (radial) loads pulling down on the shaft. Calculate axial (thrust) loads pushing inward or pulling outward. Account for external moment loads. Failing to verify these forces compromises bearing and shaft integrity.
Step 4: Orientation and Mounting Topology. Determine your physical connection style. Choose between solid shafts or hollow core designs. Decide if the unit projects vertically or horizontally. Gravity deeply impacts internal lubricant pooling. You must ensure the chosen orientation keeps all internal gears properly submerged in oil.
Step 5: Environmental Constraints. Assess the surrounding environment. Identify extreme temperature swings, typically ranging from -20°C to 79°C. Determine if you need high-vibration isolation pads. Check for specific industry regulatory compliance, such as FDA approvals for food zones.
Even perfectly sized gearboxes will fail if improperly installed or exposed to hostile environments. You must anticipate implementation risks early in the design phase.
Precision right angle gearboxes demand exact coupling alignment. Rigid connections transfer motor vibrations directly into the gearbox. External misalignment applies massive artificial loads onto the internal bearings. It will rapidly accelerate tooth wear, regardless of how tough the hardened steel construction is. Always use high-quality flexible couplings to absorb minor shaft deviations.
Standard industrial units fail miserably in chemical wash-down environments. Harsh cleaning agents eat through standard aluminum and degrade basic rubber seals. For food processing or pharmaceutical lines, you must specify substantial material upgrades.
Upgraded units require electroless nickel-plated housings to resist caustic foam. You need stainless steel output shafts to prevent rust contamination. Finally, you must equip the unit with specialized chemical-resistant seals, such as VITON®, to keep high-pressure water out of the gear chamber.
Standard units ship with basic lifetime greases suitable for ambient temperatures and intermittent use. However, continuous duty demands advanced lubrication strategies. You must transition to high-thermal-capacity synthetic lubricants if the unit runs 24/7. Furthermore, if operating near consumables, you must specify food-safe, non-toxic lubricants like NOTOX®. Mixing incorrect oil types will destroy the internal film barrier, leading to immediate metal-on-metal failure.
A right angle gear reducer based on bevel technology remains the definitive choice for premium power transmission. It excels when you prioritize transmission efficiency, low mechanical backlash, and bidirectional control over cheap self-locking capabilities. The ability to route power efficiently through L-Drives or complex T-Drives gives designers immense structural freedom.
To move forward successfully, consolidate your engineering data. Gather your exact torque requirements, maximum RPM limits, and a thorough analysis of all axial and radial loads. Once you document these metrics, engage an application engineer. They will assist with final sizing verification and provide precise 3D CAD modeling to integrate the unit flawlessly into your machine layout.
A: Yes. Unlike most worm gears, the high efficiency and exceptionally low friction of bevel gears allow them to be back-driven. You can utilize them to step up speed by driving the output shaft. However, keep in mind this inversely reduces available torque. Certain miniature models do feature limiters to prevent overspeed damage.
A: Standard industrial operations easily tolerate backlash up to 1 degree. However, precision automation and robotics require much tighter tolerances. In these environments, backlash must be controlled to under 30 arcminutes. Elite spiral bevel units frequently hit incredibly tight tolerances of <10 arcminutes.
A: The manufacturing complexity drives the initial price. Precision-ground, slanted teeth found in spiral bevels require advanced machining. Additionally, combining multiple gear stages to achieve high reduction ratios adds material cost. However, their superior energy efficiency and vastly longer operational lifespans easily offset the higher upfront expenditure.
