Yes, a gear reducer increases the usable torque available at the output shaft while reducing rotational speed. This is one of the main reasons gear reducers are installed between electric motors and industrial machinery.
Most motors operate at speeds that are much higher than the required operating speed of conveyors, mixers, lifting systems, production machines, and other mechanical equipment. A reducer converts this high-speed input into slower rotation with greater turning force.
The amount of torque increase depends mainly on the reduction ratio and mechanical efficiency of the gearbox. A higher ratio can provide greater theoretical torque multiplication, but actual output torque is always lower than the ideal value because gears, bearings, seals, and lubricant create mechanical losses.
A reducer also has rated torque limits. Increasing the ratio does not mean the gearbox can transmit unlimited torque. The gears, shafts, bearings, housing, and output connection all have mechanical and thermal limits that must be considered during selection.
For this reason, gear reducer selection should evaluate torque, ratio, motor power, operating speed, duty cycle, shock loading, and service factor together. HUAKE provides several reducer designs for industrial applications where motor speed needs to be converted into controlled low-speed, high-torque output.
A gear reducer increases torque because it changes the relationship between rotational speed and turning force.
Mechanical power can be expressed as a relationship between torque and rotational speed. When the reducer lowers the output speed, more torque becomes available at the output shaft while the total mechanical power remains approximately the same, minus transmission losses.
For example, imagine a motor supplying 20 N·m of torque to a 10:1 gear reducer. In a perfectly efficient system, the theoretical output torque would be approximately 200 N·m.
Real gearboxes are not 100% efficient. If the transmission efficiency were 95%, the estimated output torque would be approximately 190 N·m.
The basic relationship can be written as:
Output Torque ≈ Input Torque × Gear Ratio × Efficiency
| Parameter | Example |
|---|---|
| Input Torque | 20 N·m |
| Reduction Ratio | 10:1 |
| Ideal Output Torque | 200 N·m |
| Assumed Efficiency | 95% |
| Estimated Output Torque | 190 N·m |
This calculation provides a useful preliminary estimate. Final selection should always use the manufacturer's rated torque data because actual gearbox capacity depends on much more than mathematical torque multiplication.
Speed and torque move in opposite directions through a conventional reduction gearbox. When output speed decreases, torque can increase.
Consider a motor running at 1,500 rpm. If it is connected to a 10:1 reducer, the theoretical output speed becomes approximately 150 rpm. A 30:1 reducer would reduce the same motor speed to approximately 50 rpm.
| Motor Speed | Reduction Ratio | Approximate Output Speed |
|---|---|---|
| 1,500 rpm | 5:1 | 300 rpm |
| 1,500 rpm | 10:1 | 150 rpm |
| 1,500 rpm | 20:1 | 75 rpm |
| 1,500 rpm | 30:1 | 50 rpm |
| 1,500 rpm | 60:1 | 25 rpm |
As the output speed falls, the theoretical torque multiplication increases. This is why industrial machinery can use relatively high-speed motors to move heavier loads at controlled low speeds.
However, selecting the highest available reduction ratio is not automatically the best solution. Higher ratios can require additional gear stages, increase gearbox size, affect efficiency, and change thermal performance.
The machine must therefore be designed around the output speed and torque it actually requires.
No. A gear reducer does not create additional mechanical power.
It changes the way the available motor power is delivered. The motor provides relatively high speed and lower torque, while the reducer converts that into lower speed and higher torque.
Some of the input power is lost inside the gearbox due to mechanical resistance. Gear tooth friction, bearing friction, shaft seals, and lubricant movement all convert a portion of the input energy into heat.
The relationship can be simplified as:
Output Power = Input Power × Gearbox Efficiency
A reducer with good efficiency may transfer most of the motor power to the machine, but output power can never exceed input power without another energy source.
This distinction is important because increasing the gear ratio cannot compensate for an undersized motor indefinitely. If the machine requires more power than the motor can provide, changing to a larger ratio may lower speed but cannot create additional energy.
Gear ratio is one of the most important factors controlling torque multiplication.
A 5:1 reducer theoretically multiplies motor torque by approximately five before efficiency losses. A 20:1 reducer theoretically multiplies the same torque by approximately twenty.
For example:
| Input Torque | Ratio | Ideal Output Torque |
|---|---|---|
| 20 N·m | 5:1 | 100 N·m |
| 20 N·m | 10:1 | 200 N·m |
| 20 N·m | 20:1 | 400 N·m |
| 20 N·m | 30:1 | 600 N·m |
These figures are theoretical.
Actual gearbox torque is lower because efficiency is below 100%, and the reducer also has a maximum allowable output torque. If the theoretical result exceeds the gearbox's rated capacity, the gearbox cannot safely transmit that calculated torque.
For example, a theoretical calculation may indicate 1,200 N·m at the output, but if the gearbox is rated for only 800 N·m continuous torque, the gearbox should not be operated continuously at 1,200 N·m.
The reducer must therefore be sized according to the lower of the calculated requirement and the allowable gearbox capacity.
The mechanical structure of the gearbox determines how much torque it can safely transmit.
Gear teeth experience contact stress and bending stress every time they transmit load. If torque becomes excessive, tooth surfaces can wear, pit, crack, or fail.
Shafts also experience torsional stress. Bearings must support the radial and axial forces generated by the gear train. Keys, splines, couplings, and output flanges must transmit the same torque into the driven machine.
The gearbox housing must maintain correct shaft alignment while supporting these forces. Lubrication must also remain capable of protecting heavily loaded gear contacts.
Thermal capacity creates another limit. Higher torque usually means higher internal forces and greater heat generation. A gearbox may therefore reach its allowable operating temperature before reaching the maximum theoretical mechanical torque.
For this reason, a gearbox torque rating represents an engineered system limit rather than simply the strength of one gear.
Rated torque, sometimes called nominal torque, is the torque the reducer is designed to transmit under specified operating conditions.
It normally represents a continuous or defined operating condition rather than the absolute maximum torque the gearbox can survive for a few seconds.
Rated torque is one of the most important specifications when selecting a reducer because it should cover the machine's normal operating load.
For example, if a conveyor requires 700 N·m during normal operation, selecting a gearbox rated for only 600 N·m would be unsuitable even if the gearbox could briefly tolerate higher peak torque.
Rated torque also depends on output speed and gearbox design. The same reducer family may have different allowable torque values depending on ratio, operating speed, and model size.
The Precision RV Cycloidal Gear Reducer for Robot Joints, for example, is designed around defined nominal and peak torque ratings rather than unlimited theoretical torque multiplication.
Peak torque is the higher short-duration torque that a gearbox can withstand during events such as acceleration, sudden stopping, reversing, impact, or temporary overload.
Peak torque is not the same as continuous rated torque.
A gearbox may tolerate a high load for a few seconds without damage but overheat or wear rapidly if that same load is applied continuously.
This distinction is particularly important in robotics, automation, lifting equipment, conveyors, and machines that start under load.
For example, a conveyor may require 600 N·m while running normally but 1,000 N·m during startup. The gearbox must be capable of handling both conditions.
| Torque Type | Meaning |
|---|---|
| Continuous Torque | Normal operating torque |
| Rated Torque | Manufacturer-approved operating torque |
| Peak Torque | Short-duration maximum load |
| Starting Torque | Torque required during startup |
| Emergency Torque | Temporary extreme condition |
| Holding Torque | Torque needed to resist movement |
Ignoring peak torque is a common cause of premature gearbox failure.
Service factor provides additional capacity for real operating conditions that are more demanding than a perfectly steady theoretical load.
Industrial machines rarely operate under constant laboratory conditions. Conveyors start and stop. Mixers process materials with changing viscosity. Crushers experience impacts. Lifting systems accelerate and decelerate loads. Production equipment can jam unexpectedly.
A service factor allows the reducer to handle these conditions with an appropriate engineering margin.
A simplified preliminary relationship is:
Required Gearbox Torque = Machine Torque × Service Factor
If the machine requires 500 N·m and the engineering selection uses a service factor of 1.5, the reducer would need to be evaluated around:
500 × 1.5 = 750 N·m
The appropriate service factor should come from the gearbox manufacturer's selection guidance and the actual application rather than using one fixed value for every machine.
Not necessarily.
A higher ratio increases theoretical torque multiplication, but the gearbox may reach other limits before that torque can be used safely.
For example, increasing ratio may require an additional gear stage. This introduces extra friction and can reduce overall efficiency.
The output shaft, bearings, and gear teeth also have fixed structural limits. Once these limits are reached, additional theoretical torque multiplication cannot be used safely.
A very high ratio also produces very low output speed. The machine may therefore become too slow for the intended production process.
Thermal performance can become another constraint. A high-ratio gearbox operating continuously under heavy load may generate more heat than the housing can dissipate.
The correct ratio is therefore the ratio that produces the required speed while allowing sufficient usable torque within the gearbox's mechanical and thermal ratings.
A helical reducer uses gears with angled teeth to transfer power through one or more reduction stages.
When a smaller helical gear drives a larger gear, output speed decreases and torque increases. Several gear teeth can share the load during meshing, helping provide smooth transmission.
Helical reducers are widely used in conveyors, mixers, material-handling systems, and other continuous-duty industrial applications because they can combine high load capacity with efficient transmission.
HUAKE's F Series Parallel Shaft Helical Gearmotor uses parallel-shaft helical gearing for industrial power transmission.
The parallel layout can also help machine builders achieve high torque without requiring the motor and output shaft to remain on one centerline.
Helical reducers are particularly suitable where energy efficiency matters because continuously operating machinery can accumulate significant energy losses over long service periods.
A worm reducer uses a screw-like worm shaft driving a larger worm wheel.
The worm can turn many times while the worm wheel completes one revolution, allowing substantial speed reduction in a compact right-angle arrangement.
This reduction produces increased output torque.
HUAKE's Compact Aluminum NMRV Worm Gearbox uses this type of transmission for general mechanical applications.
Worm gearboxes can provide high ratios without requiring an extremely long drivetrain. However, the sliding contact between the worm and wheel can produce greater friction than many helical or bevel arrangements.
This means actual torque output can be affected by lower transmission efficiency, particularly at certain ratios and loads.
Worm reducers therefore need careful consideration of lubrication, operating temperature, ratio, duty cycle, and thermal capacity.
A bevel reducer increases torque through gear reduction while also changing the direction of power transmission.
Spiral bevel systems normally position the input and output shafts approximately 90 degrees apart. This allows the motor to be mounted beside the driven machine instead of directly in line with it.
The reduction can be created through the bevel stage itself or through a combination of helical and bevel stages.
HUAKE's KA47 Spiral Bevel Gear Reducer is an example of a compact right-angle transmission used for industrial machinery.
Bevel reducers can be particularly attractive where high torque, right-angle installation, and continuous-duty efficiency are all important.
They are commonly considered for conveyors, packaging machinery, mixers, and automated production equipment.
A planetary gearbox increases torque by combining speed reduction with load sharing across several planet gears.
A typical planetary reducer contains a central sun gear, multiple planet gears, a carrier, and an outer ring gear. Several gears engage simultaneously, distributing transmitted load across multiple contact points.
This architecture allows relatively high torque to be transmitted within a compact diameter.
Planetary reducers are therefore frequently used in servo systems, automated equipment, machine tools, and other applications where torque density is important.
Precision planetary reducers can also provide controlled backlash and high torsional stiffness for positioning applications.
However, the usable torque still depends on gear tooth strength, bearing capacity, housing rigidity, lubrication, and thermal limits.
A planetary reducer should therefore be selected from rated torque and dynamic load data rather than assuming its compact size means unlimited overload capacity.
Cycloidal reducers use a different internal mechanism from conventional helical or worm gearboxes.
An eccentric input drives cycloidal discs that engage with multiple pins or rollers. Instead of transmitting the entire load through only a small number of gear teeth, the design can distribute load across multiple contact points.
This helps cycloidal reducers achieve strong torque density and resistance to shock loading.

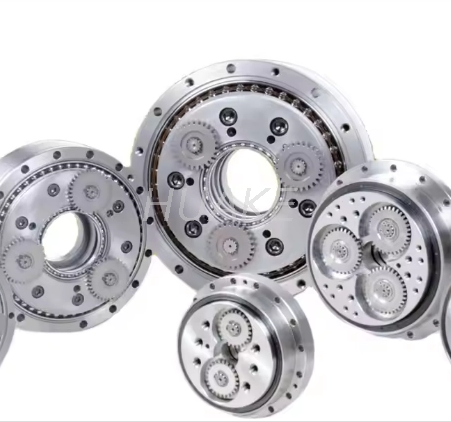

Precision RV reducers use this principle in robotics and automation where compact size, high output torque, rigidity, and precision are required.
HUAKE's RV cycloidal reducer range uses a two-stage transmission structure and lists separate nominal and peak torque capacities across different models, illustrating why torque capacity must be checked against a specific reducer rather than inferred only from the ratio.
Cycloidal reducers are therefore useful for high-torque applications, but model selection still needs to account for output speed, peak load, operating cycle, and precision requirements.
Efficiency determines how much of the motor's mechanical input reaches the gearbox output.
If two reducers have the same ratio but different efficiencies, the more efficient gearbox can provide more usable output torque from the same motor input.
For example:
| Input Torque | Ratio | Efficiency | Estimated Output Torque |
|---|---|---|---|
| 20 N·m | 10:1 | 98% | 196 N·m |
| 20 N·m | 10:1 | 95% | 190 N·m |
| 20 N·m | 10:1 | 90% | 180 N·m |
| 20 N·m | 10:1 | 80% | 160 N·m |
The difference becomes more important in continuously operating machinery.
Lower efficiency also means more power is converted into heat. This can raise gearbox temperature and increase cooling or maintenance requirements.
Gearbox efficiency should therefore be considered together with output torque rather than treated only as an energy-saving specification.
A reducer can allow a motor to apply greater torque to a load, but it cannot overcome the motor's power limitations.
For example, a small motor connected to a high-ratio reducer may generate enough output torque to move a heavy mechanism slowly.
However, increasing ratio also reduces speed. If the application requires the heavy load to move quickly, the small motor may not provide enough power.
This relationship is especially important in lifting systems. A reducer can increase shaft torque, but the complete design must also consider drum diameter, cable or chain load, mechanical efficiency, acceleration, braking, and safety requirements.
A larger ratio should therefore not be used as a substitute for correct motor sizing.
Motor power and reducer ratio must be selected together.
Overloading occurs when the gearbox is required to transmit more torque than its design allows.
Short overloads can create very high tooth and bearing stresses. Repeated overload can accelerate gear fatigue, surface pitting, bearing damage, and shaft deformation.
Continuous overload often produces excessive heat because the gearbox is transmitting more load than its thermal design can handle.
Possible symptoms include:
| Symptom | Possible Torque-Related Cause |
|---|---|
| Excessive Temperature | Continuous overload |
| Abnormal Gear Noise | Tooth stress or damage |
| Vibration | Gear or bearing damage |
| Oil Degradation | Excessive heat |
| Shaft Damage | High torsional load |
| Bearing Failure | Excessive gear forces |
| Broken Gear Teeth | Severe shock or overload |
| Reduced Service Life | Repeated operation above rating |
If the driven machine frequently jams or experiences impact loads, the reducer should be sized for those conditions instead of only the normal operating torque.
The correct torque calculation depends on the machine.
A conveyor may require calculations based on belt load, pulley diameter, friction, incline, and acceleration. A mixer may depend on material viscosity, impeller size, and operating speed. A lifting system may depend on load mass and drum radius.
When motor power and speed are known, torque can also be estimated from:
Torque (N·m) = 9550 × Power (kW) ÷ Speed (rpm)
For example, a 5.5 kW motor operating at 1,500 rpm produces approximately:
9550 × 5.5 ÷ 1500 ≈ 35 N·m
If this motor drives a 20:1 reducer, the theoretical output torque before losses is approximately:
35 × 20 = 700 N·m
If gearbox efficiency is assumed to be 95%:
700 × 0.95 ≈ 665 N·m
This is still only a preliminary calculation. The reducer must be checked against manufacturer-rated torque, service factor, peak torque, and thermal capacity.
Oversizing torque is not always beneficial.
A much larger gearbox can increase purchase price, machine weight, installation space, shaft inertia, and structural requirements.
Undersizing is equally problematic because the gearbox may overheat or fail prematurely.
The objective is to identify the required continuous torque, peak torque, and service conditions accurately.
A practical reducer specification should include:
| Selection Factor | What to Confirm |
|---|---|
| Motor Power | Available kW or HP |
| Motor Speed | Normal and maximum rpm |
| Required Output Speed | Machine operating rpm |
| Gear Ratio | Required reduction |
| Continuous Torque | Normal machine load |
| Starting Torque | Startup requirement |
| Peak Torque | Maximum short-duration load |
| Duty Cycle | Continuous or intermittent |
| Service Factor | Application load severity |
| Shaft Arrangement | Inline, parallel, right-angle |
| Radial Load | Pulley, sprocket, pinion loads |
| Axial Load | Thrust acting on output shaft |
| Environment | Dust, temperature, moisture, corrosion |
These factors give a much more accurate basis for gearbox selection than simply asking for a reducer with “high torque.”
There is no single reducer type that is best for every high-torque application.
Helical reducers are strong candidates for conveyors and continuous industrial machinery because they can provide efficient torque transmission over long operating periods.
Bevel reducers can provide high torque when a right-angle drivetrain is required.
Planetary reducers provide high torque density when installation space is limited.
Cycloidal and RV reducers are useful where compact high torque, impact resistance, rigidity, and precision are required.

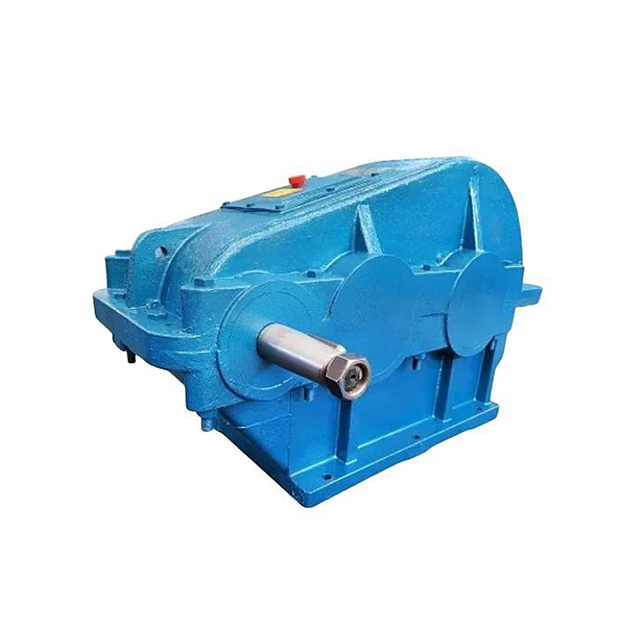

Large cylindrical or heavy industrial gearboxes are more appropriate for mining, metallurgy, bulk handling, and other large mechanical drives.
Worm reducers can also provide substantial torque multiplication through high reduction ratios, but efficiency and thermal conditions should be checked carefully.
The application should therefore determine the gearbox rather than selecting a reducer solely because it has the highest catalog torque.
One common mistake is assuming that calculated torque multiplication equals allowable gearbox torque. The mathematical result may exceed the reducer's mechanical rating.
Another mistake is ignoring startup and shock loads. A gearbox that handles normal running torque may still fail when a fully loaded machine starts.
Selecting only by motor power can also cause problems because identical motors can drive machines with very different load characteristics.
A higher gear ratio is sometimes chosen simply to gain more torque, even when the resulting output speed becomes too low for production.
Efficiency is also frequently ignored. Lower gearbox efficiency reduces usable torque and increases heat.
Output shaft loads deserve attention as well. A pulley, chain sprocket, or pinion mounted directly on the gearbox shaft can create high radial loads independent of transmitted torque.
Good reducer selection therefore requires a complete view of the drivetrain.
HUAKE provides several reducer technologies that can support different torque and transmission requirements.
Helical reducers are available for efficient continuous-duty industrial power transmission. Bevel gear reducers provide right-angle transmission for equipment where machine layout and torque must both be considered.
Worm reducers provide compact high-ratio transmission for general mechanical applications. Planetary reducers can support compact high-torque systems, including automation and servo applications.
RV cycloidal reducers address more specialized applications where high torque density, rigidity, impact resistance, and precision are important. HUAKE's current RV product information, for example, separates nominal torque, peak torque, reduction ratio, and transmission efficiency rather than describing torque with one general figure.
This distinction is important for industrial buyers because selecting a reducer from one maximum torque number can lead to incorrect sizing.
When requesting a reducer from HUAKE, buyers should provide motor power, motor speed, output speed, continuous torque, peak torque, operating hours, shaft arrangement, mounting position, and environmental conditions.
Complete operating data allows the reducer type and frame size to be selected according to the actual drivetrain requirement.
A gear reducer does increase torque, but it does so by reducing rotational speed rather than creating additional power.
The theoretical increase in torque is mainly determined by the reduction ratio. Actual output torque is lower because every gearbox has mechanical losses.
Gearbox efficiency, number of stages, gear type, lubrication, bearings, and operating temperature all affect the torque that reaches the output shaft.
The reducer itself also has rated torque and peak torque limits. A larger ratio therefore does not automatically mean that unlimited torque can be transmitted.
Helical, bevel, worm, planetary, and cycloidal reducers each provide different combinations of torque capacity, efficiency, ratio, shaft arrangement, size, and precision.
For industrial equipment, the correct reducer should be selected according to the required output torque, speed, motor power, duty cycle, service factor, peak load, and installation conditions.
HUAKE provides multiple reducer technologies for applications ranging from general industrial machinery to automation and precision robotic transmission.
The most important selection principle is simple: calculate the torque the machine actually needs, then choose a reducer that can deliver that torque safely and continuously at the required output speed.
Yes. A gear reducer reduces output speed and increases available output torque. The theoretical torque increase is related to the reduction ratio, while actual torque is reduced by gearbox efficiency losses. The reducer must also remain within its rated torque capacity.
A simplified estimate is input torque multiplied by the reduction ratio and gearbox efficiency. For example, 20 N·m input torque through a 10:1 reducer with 95% efficiency produces approximately 190 N·m of estimated output torque.
Generally, a higher reduction ratio provides greater theoretical torque multiplication. However, usable torque is limited by the gearbox's rated torque, bearings, shafts, gear strength, efficiency, and thermal capacity.
No. A reducer does not increase mechanical power or horsepower. It converts high-speed, lower-torque input into lower-speed, higher-torque output. Actual output power is slightly lower than input power because of transmission losses.
Mechanical losses occur through gear friction, bearings, shaft seals, and lubricant movement. These losses reduce the amount of input power reaching the output shaft. Gearbox efficiency accounts for this difference.
Rated torque is the torque the reducer is designed to handle under specified normal operating conditions. Peak torque is a higher short-duration load that may occur during startup, acceleration, reversing, impact, or emergency conditions.
A reducer can significantly increase the output torque of a small motor, but output speed decreases accordingly. The reducer cannot create additional power, so applications requiring both high torque and high speed may require a larger motor.
Planetary, cycloidal, heavy-duty helical, and cylindrical reducers can all provide high torque depending on their size and design. The best type depends on required speed, ratio, duty cycle, shaft arrangement, available space, precision, and peak loads.
A common preliminary formula is:
Output Torque = Input Torque × Reduction Ratio × Efficiency
If motor power and speed are known, input torque can first be estimated using:
Torque (N·m) = 9550 × Power (kW) ÷ Speed (rpm)
Final selection should use the manufacturer's rated torque data.
Provide motor power, motor speed, required output speed, continuous machine torque, starting torque, peak load, operating hours, duty cycle, shaft arrangement, mounting position, and environmental conditions. This information allows the reducer size and transmission type to be matched more accurately to the application.
