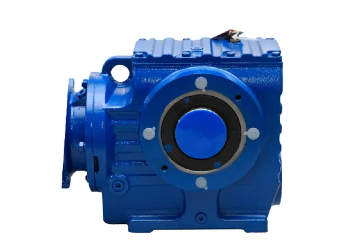

Worm gear reducers are widely used in industrial applications due to their unique design, which combines a worm (a screw-like gear) and a worm wheel (a gear similar to a spur gear). This pairing allows for significant speed reduction and torque increase in a compact package, making worm gear reducers an essential component in many machines and systems. Their capability to transmit power at right angles and provide high gear reduction ratios in a single stage sets them apart from other types of gear reducers. Understanding both the advantages and limitations of worm gear reducers is key to selecting the right solution for specific industrial needs.
One of the most notable advantages of worm gear reducers is their ability to achieve very high gear reduction ratios in a single stage. Unlike other gear systems that require multiple stages to accomplish the same reduction, worm gear reducers can often deliver ratios from 10:1 up to 100:1 or more in a compact and simple design. This capability is particularly advantageous in space-constrained environments where fitting a large or multi-stage gearbox would be impractical. Additionally, the high gear ratios allow for significant torque multiplication, making worm gear reducers highly suitable for heavy-duty applications such as conveyor drives, lifting equipment, and mixers. Their ability to reduce speed and increase torque in a small footprint is a key factor in their widespread industrial use.
Worm gear reducers transmit power at a 90-degree angle between the input and output shafts. This feature enables more flexible machine layouts and helps save space in complex industrial setups. In applications where straight-line power transfer is either impossible or undesirable due to equipment arrangement, this right-angle configuration allows designers to place motors and load shafts in more convenient or protected areas. It also reduces the need for additional components like bevel gears or couplings to change power direction, streamlining the overall mechanical design. For automated production lines and compact equipment configurations, the ability to change shaft orientation without requiring additional parts simplifies engineering and improves reliability.
In many configurations, worm gear reducers exhibit a self-locking property, meaning the worm wheel cannot drive the worm in reverse. This characteristic is beneficial for applications requiring holding torque or braking without the need for additional brakes or locking devices. For example, lifts, hoists, and conveyor systems benefit from this safety feature, which helps prevent back-driving and unintended movement. The self-locking ability adds a layer of security in systems where safety is critical, such as in medical lifts or vertical actuation mechanisms. This natural resistance to back-driving can also reduce the wear on auxiliary braking systems, thereby lowering maintenance costs and improving equipment longevity.
The sliding contact between the worm and worm wheel results in quieter operation compared to other gear types like spur or bevel gears, which rely on rolling contact. This makes worm gear reducers suitable for applications where noise reduction is important, such as in food processing machinery, packaging equipment, and medical devices. In these environments, low operational noise can contribute to improved working conditions and reduce the need for soundproof enclosures or noise-dampening solutions. Furthermore, the smooth meshing action helps minimize vibration, which enhances precision in motion control applications and protects delicate or sensitive loads from mechanical shocks.
The worm gear’s sliding action helps absorb shock loads and dampen vibrations in the drivetrain. This can increase the lifespan of the equipment and protect sensitive components from sudden torque spikes, improving overall system reliability and reducing maintenance needs. Industries such as mining, material handling, and construction often face fluctuating or unpredictable loads that can cause sudden mechanical stress. In these situations, the inherent cushioning ability of worm gears provides an extra layer of protection for motors and downstream equipment, reducing the risk of sudden failures and costly downtime.
Worm gear reducers tend to have simpler designs and fewer components than multi-stage gearboxes, which can translate to lower manufacturing and maintenance costs. Their compact size and fewer moving parts often mean easier installation and serviceability, which is attractive to many industrial users. In addition, the reduced need for external components like couplings, right-angle adapters, or holding brakes can further lower the total system cost. From an operational standpoint, their simplicity also means fewer points of failure and easier troubleshooting, making them a cost-effective and reliable choice for a wide range of applications—from small machinery to large-scale industrial systems.
One of the primary drawbacks of worm gear reducers is their relatively low mechanical efficiency. The sliding friction between the worm and the worm wheel generates more heat and energy loss than the rolling contact in other gear systems. Typical efficiencies range from 50% to 90%, depending on the materials used, lubrication, and design quality. This heat generation may require additional cooling or lubrication systems to maintain performance and avoid premature wear.
Due to the sliding contact, worm gear reducers experience more wear over time compared to other gear types. This necessitates more frequent lubrication and careful selection of lubricants to reduce friction and protect the gear surfaces. Inadequate lubrication can accelerate wear and lead to costly downtime or repairs.
Although worm gear reducers excel at high reduction ratios and compact design, they are generally not suitable for very high torque applications. The friction and heat generated at high loads can limit their ability to handle extreme power levels, where bevel or planetary gear systems might be more appropriate.
The inefficiency and friction in worm gear reducers lead to heat buildup during operation. This heat can degrade lubricant quality and damage gear components if not managed properly. Many worm gear reducers require robust thermal management, such as larger housings for heat dissipation, oil coolers, or forced ventilation, adding to system complexity and cost.
While worm gear reducers provide good torque and speed control, they tend to have more backlash (the slight gap or play between gear teeth) compared to precision gearboxes like planetary reducers. This can be a disadvantage in applications requiring extremely accurate positioning or repeatability, such as CNC machinery or robotics.
The self-locking feature, while advantageous in some cases, can be a limitation in applications that require reversible motion. In cases where the output shaft must drive the input shaft or where bidirectional operation is necessary, worm gear reducers might not be suitable or require special designs to overcome this issue.
Worm gear reducers deliver a powerful mix of compact design, high torque output, and reliable right-angle motion, making them essential in countless industrial applications. Their self-locking function enhances safety, and their quiet, vibration-dampening performance extends machinery lifespan. However, factors such as lower mechanical efficiency and potential heat buildup mean thoughtful design and regular maintenance are key to maximizing performance.
