Understanding The Working Principle of Bevel Gear Reducers

Bevel gear reducers are vital mechanical devices used in countless machines and industrial systems to transfer power efficiently while changing the direction of motion. These gear reducers use specially designed bevel gears that enable the transmission of torque between intersecting shafts, typically positioned at right angles. Their ability to alter speed and torque while maintaining compactness and reliability makes them indispensable in many applications, from conveyor belts and automotive differentials to robotics and packaging machinery.

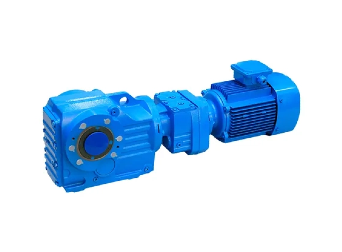

What Are Bevel Gear Reducers?

Bevel gear reducers are a specialized type of gearbox that primarily utilizes bevel gears to reduce the rotational speed of an input shaft while simultaneously increasing the output torque. The term “reducer” specifically refers to their fundamental role in decreasing the speed of rotation and, as a result, increasing torque output, which is crucial for machinery that requires powerful yet precisely controlled movement. This speed reduction allows machines to operate efficiently under heavy loads without damaging components or sacrificing performance.

The key characteristic that sets bevel gear reducers apart is their use of bevel gears—gears shaped like truncated cones with teeth cut along the cone surface. These unique gears enable the shafts within the gearbox to intersect at specific angles, most commonly at 90 degrees, although other angles are possible depending on the design requirements. This ability to change shaft orientation contrasts with traditional parallel shaft gearboxes, where the input and output shafts run parallel to one another. By allowing shafts to intersect at an angle, bevel gear reducers provide flexible mechanical design options, making them ideal for applications where a change in direction of the power transmission is needed. This versatility makes bevel gear reducers widely used across various industries and machinery types.

The Core Components of a Bevel Gear Reducer

To understand how bevel gear reducers work, it’s important to first know their main parts:

• Input Shaft: The shaft where power from a motor or engine enters the gearbox.

• Bevel Gears: The critical gears that mesh together; one gear is usually the driver (pinion), and the other is the driven gear.

• Output Shaft: The shaft that delivers the reduced speed and increased torque to the machine.

• Gear Housing: The enclosure that protects the gears and maintains proper alignment.

• Bearings: Support the shafts and allow smooth rotation with minimal friction.

• Lubrication System: Keeps the gears and bearings lubricated to reduce wear and heat buildup.

Bevel Gear Design and Geometry

Bevel gears differ significantly from traditional spur or helical gears due to their conical shape and angular orientation. Their teeth are cut on the surface of cones, allowing two shafts to intersect. The most common type is the 90-degree bevel gear, where shafts are perpendicular, but bevel gears can also accommodate other shaft angles depending on design needs.

There are several types of bevel gears:

• Straight Bevel Gears: Teeth are cut straight and radiate out from the apex of the cone. These are simpler to manufacture but can produce noise and stress at higher speeds.

• Spiral Bevel Gears: Teeth are curved and set at an angle, providing smoother and quieter operation due to gradual engagement.

• Hypoid Bevel Gears: Similar to spiral but with the axes offset, often used in automotive differentials for smoother torque transfer.

• Zerol Bevel Gears: Have teeth similar to spiral gears but with zero spiral angle, offering a compromise between straight and spiral types.

How Bevel Gear Reducers Work: The Basic Principle

At its core, the bevel gear reducer functions by transmitting rotational motion and torque from the input shaft to the output shaft through a pair of precisely meshed bevel gears. This process allows the reducer to change the speed, torque, and direction of the power being transmitted, making it highly versatile for various mechanical applications. Here is a detailed step-by-step explanation of how bevel gear reducers operate:

• Input Power Transmission: The power begins its journey by entering the reducer through the input shaft, which is typically connected to a motor or another type of prime mover. This input shaft usually rotates at a relatively high speed but produces lower torque. The goal of the reducer is to modify these characteristics—reducing speed while increasing torque—to better suit the needs of the driven machinery.

• Gear Engagement: The input shaft is linked to the pinion gear, which is a smaller bevel gear responsible for driving the larger bevel gear, often called the crown or driven gear. The pinion gear’s teeth are carefully designed to mesh accurately with the teeth of the driven bevel gear, ensuring smooth and efficient power transmission. The bevel gears are mounted at an angle to each other, which enables them to engage precisely and transfer power effectively between intersecting shafts.

• Speed Reduction and Torque Increase: One of the primary functions of a bevel gear reducer is to reduce the rotational speed of the output shaft compared to the input. This is achieved due to the difference in size or the number of teeth between the pinion gear and the driven gear. For example, if the driven bevel gear has twice the number of teeth as the pinion gear, the output shaft will rotate at half the speed of the input shaft. Correspondingly, the torque at the output shaft increases proportionally—in this case, it would double—allowing the machine to handle heavier loads or perform tasks requiring more force.

• Change of Direction: A defining feature of bevel gear reducers is their ability to change the direction of rotation. Because bevel gears are conical and their shafts intersect at a specific angle—most commonly 90 degrees—the output shaft rotates at an angle relative to the input shaft. This capability is especially useful in mechanical designs where space is limited or where power must be transmitted around corners or within compact assemblies.

• Output Power Delivery: After reducing speed, increasing torque, and changing direction, the output shaft delivers the modified power to the driven equipment or machinery. This output shaft provides the necessary force and control to perform demanding tasks, whether it is driving conveyor belts, robotic arms, or automotive differentials. The precise and reliable operation of the bevel gear reducer ensures that the connected equipment functions efficiently and safely under various load conditions.

Efficiency and Torque Transmission

Bevel gear reducers are generally efficient, with power losses mostly due to friction between gear teeth and bearings. The gear design—especially spiral or hypoid types—helps minimize vibration and noise, contributing to smoother operation and longer gear life.

The torque capacity depends on gear size, tooth design, material strength, and lubrication quality. Proper selection and maintenance ensure that bevel gear reducers handle the expected load without excessive wear or failure.

Why Use Bevel Gear Reducers?

Bevel gear reducers offer several advantages:

• Direction Change: Their unique geometry allows shafts to intersect at angles, enabling mechanical designs that require changing the direction of power transmission.

• Compact Design: They provide high torque in a small footprint, ideal for space-limited applications.

• Versatility: Can be designed for various speed ratios and torque requirements.

• Reliability: When properly maintained, bevel gear reducers offer long service life with consistent performance.

Conclusion

Bevel gear reducers are essential components in modern machinery, enabling efficient power transmission while changing the direction of shafts. Their versatile design supports a wide range of industrial applications, offering speed reduction, torque multiplication, and compact integration. A solid understanding of their working principles and maintenance ensures reliable and long-lasting performance. Whether used in automotive differentials, conveyor systems, or robotic arms, bevel gear reducers remain a cornerstone of mechanical power transmission.
