System integrators and mechanical engineers routinely face conflicting demands in right-angle power transmission. You must maximize torque density and rotational speed while strictly controlling noise, heat buildup, and spatial footprints. Balancing these variables often makes standard gear choices fall short. A spiral bevel gear reducer is an orthogonal-axis mechanical device designed specifically to solve this issue. It uses specialized curved, conical gears to transfer power seamlessly at a 90-degree angle. We aim to provide a highly technical, commercial-stage evaluation framework for engineers facing this design hurdle. You will discover exactly when a spiral bevel system justifies its higher initial cost compared to straight bevel, hypoid, or worm gear alternatives. We will break down operational mechanics, specific application boundaries, and common failure modes to help you optimize your next drive system.
Optimal Application Window: Engineered for high-speed (>1,000 RPM), high-torque right-angle routing where single-stage ratios between 1:1 and 6:1 are required.
Progressive Engagement: Curved tooth geometry allows point-to-line-to-point contact, reducing shock loading and minimizing the "clattering" noise associated with straight gears.
High Efficiency: Delivers 94% to 98% mechanical efficiency, drastically reducing friction-induced heat compared to worm and hypoid drives.
Sourcing Reality Check: Manufacturing complexity pushes costs 1.2x to 1.5x higher than straight bevels; units must be manufactured, lapped, and replaced in exact matching pairs.
Design Constraint: Significant axial thrust loads are generated, demanding robust thrust bearings and rigid housing to prevent efficiency-killing pinion deflection.
These reducers operate primarily on intersecting axes. They typically orient at exactly 90 degrees to route mechanical power efficiently. The design uses conical gear profiles cut into specific spiral curves. This geometry dictates how power transfers across the mechanical mesh inside the housing.
The most significant mechanical benefit comes directly from progressive engagement. Straight teeth suffer from instantaneous full-line impact during operation. They crash together all at once. This creates heavy vibration. Spiral teeth engage much more gradually. The mesh initiates as a single point. It then widens into a full contact line across the tooth face. Finally, it disengages smoothly back into a single point. This cinematic flow minimizes shock loading dramatically. It also reduces the loud operational noise typically found in straight gear assemblies.
True spiral bevel gears require robust, high-quality metallurgy to function correctly. Manufacturers rely heavily on high-grade carbon or specialized alloy steels. They usually case-harden these metals to withstand extreme surface stresses. Softer materials like brass, bronze, or standard plastics simply cannot withstand the complex axial and radial loading. Furthermore, modern production uses advanced profile-shifting methodologies. For example, Gleason systems adjust the tooth geometry precisely. They shift the profiles to balance structural strength between the smaller pinion and the larger ring gear. The pinion receives positive shifting, making its roots thicker. The ring gear receives negative shifting. This creates a balanced, highly durable mechanical mesh capable of surviving extreme cyclic fatigue.

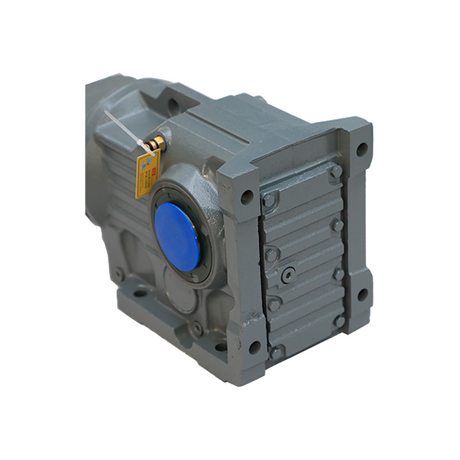

When specifying a Bevel Gearbox, engineers must carefully frame the problem before integration. You need strict success criteria. Look for scenarios demanding continuous, uninterrupted duty cycles. Operations requiring minimal heat generation and low vibration heavily favor these units. Prime examples include industrial cooling tower fans, heavy-payload robotics, and continuous packaging lines. You must prioritize long-term continuous reliability.
The "sweet spot" for specifying this technology is incredibly clear. Specify these drives when operational speeds routinely exceed 1,000 RPM. They excel specifically when you need a smaller spatial footprint in your machine design. You achieve exceptionally high power density without sacrificing heavy load capacity. This lets you shrink the overall machine size.
However, strict hard boundaries exist where you should avoid them. Avoid applications needing abnormally high single-stage reduction ratios. Do not use them if you need a ratio greater than 6:1. Beyond this mathematical limit, the pinion becomes physically too small. It typically dips below the critical 12-tooth safety minimum. A pinion with fewer than 12 teeth lacks the necessary contact ratio. It will fail prematurely under standard industrial loads.
You should also avoid them for absolute zero backlash scenarios. Standard industrial models typically offer 10 to 30 arc-minutes of operational backlash. If you design ultra-rigid indexing tables, this much play is unacceptable. Such applications require alternative, high-precision servo-grade solutions. Finally, never use them as a "speed increaser." Driving the small pinion via the larger ring gear causes rapid torque drop-off. You will experience severe mechanical binding. It also results in immediate and severe efficiency loss.
Engineers frequently weigh spiral bevels against three common mechanical alternatives. Each option presents distinct engineering trade-offs in right-angle power transmission. You must understand these differences to make an informed decision.
Straight bevel gears are generally cheaper to manufacture. They handle low-speed operations under 1,000 RPM quite well. However, they suffer from high operational noise and heavy shock loading. They also experience rapid mechanical wear at high RPMs. Spiral designs cost approximately 1.2 to 1.5 times more. Yet, they offer vastly superior fatigue life and exceptional acoustic performance.
Hypoid gears feature non-intersecting operational axes. This unique design allows the pinion to be physically offset from the center. You gain a much larger pinion diameter and higher overall torque capacity. Unfortunately, the heavy sliding friction of hypoid meshes generates intense heat. You must use extreme pressure (EP) lubricants to prevent galling. They also yield slightly lower mechanical efficiency than true intersecting spiral reducers.
Worm gear drives easily achieve massive single-stage reduction ratios. They often range widely from 30:1 up to 90:1. You achieve this massive reduction at the cost of extreme friction. Worm gears generate immense operational heat. They offer abysmal mechanical efficiency, sometimes dropping below 60%. Spiral bevels operate much cooler under similar loads. They consistently retain between 94% and 98% of your initial input power.
| Gear Type | Typical Efficiency | Noise Level | Ideal Speed Range | Friction Characteristic |
|---|---|---|---|---|
| Spiral Bevel | 94% - 98% | Low | High (>1000 RPM) | Rolling / Low Sliding |
| Straight Bevel | 93% - 97% | High | Low (<1000 RPM) | Rolling |
| Hypoid | 90% - 95% | Low | Medium to High | High Sliding |
| Worm Gear | 50% - 85% | Low | Low to Medium | Extreme Sliding |
Selecting commercial Bevel Gear Reducers requires rigorous vendor evaluation. Use this specific engineering checklist to validate supplier claims before physical integration.
Mechanical Efficiency Validation: Look carefully for documented, physical test data. Verified mechanical efficiencies should consistently hit the 94% to 98% range. Always ensure the manufacturer distinguishes between theoretical mathematical calculations and actual operational realities. Ask for dynamometer test results whenever possible.
Backlash Tolerances: Verify exact mechanical calibration methods during assembly. The supplier must provide precision shimming or lock-nut adjustments. These specific methods help achieve and hold the standard 10 to 30 arc-minute backlash tolerance during long-term continuous operation.
Housing Rigidity and Bearing Specs: The external enclosure must absolutely prevent internal shaft deflection. Spiral bevel configurations generate varying axial thrust loads. This thrust changes depending directly on the rotational direction. You must evaluate the integration of heavy-duty, double-sealed thrust bearings. Cast iron or rigid alloy housings are mandatory here.
Supplier Competence: Assess the OEM thoroughly before purchasing. Do they offer robust mechanical customization for your specific shafts? Do they provide clear, AGMA-standard power ratings? Ensure they maintain adequate inventory. They must offer short lead times for properly paired gear sets to keep your production moving.
Field deployment introduces unique mechanical realities. You must understand specific maintenance rules to prevent catastrophic drive failure on the factory floor.
The "matched pair" rule represents a critical operational reality. Manufacturers lap these specific gears together during final production. Lapping uses a fine abrasive compound to optimize the exact contact patch between the two gears. Therefore, you must always replace them as a matched right-handed and left-handed pair. Mixing unmatched parts instantly destroys the precision mesh geometry. It causes severe operational noise and rapid destruction.
Managing internal thrust and deflection is equally important. You must address the high risk of single-end supported pinions. They often deflect under heavy operational loads. This slight bending alters the precise contact pattern between the teeth. Consequently, mechanical efficiency drops sharply. Tooth wear accelerates rapidly, eventually leading to complete fracture. Using preloaded tapered roller bearings helps secure the shaft rigidly.
Identifying primary failure modes helps establish better preventive maintenance routines. Watch out for these specific operational issues:
Pitting: This dangerous surface fatigue is caused by excessive contact stress. It happens frequently if you undersize the reducer for the actual application. Micro-cracks form over time, eventually causing small pieces of metal to flake off.
Scuffing and Scoring: This physical damage results directly from lubrication starvation. It also occurs during localized overheating events where the protective oil film breaks down completely. Metal welds to metal temporarily, tearing the surface apart.
Bending Fatigue: The inherent convex and concave overlap of the spiral tooth naturally mitigates this risk. However, severe shock loads or sudden machine jamming can still crack the tooth root completely.
Spiral bevel drives offer an unmatched combination for right-angle power routing. They deliver exceptional 94%+ mechanical efficiency and high-speed acoustic smoothness. They easily outperform straight and worm alternatives in heavy continuous duty cycles. The upfront premium reflects high manufacturing complexity. However, this initial cost is completely offset by extended mechanical lifespan and drastically reduced thermal losses. Maintenance overhead drops significantly when the system is correctly specified from the start.
Consult directly with application specialists before finalizing your machine design. Review detailed 3D CAD models to verify tight spatial constraints. Calculate your exact load, duty cycle, and thrust requirements meticulously. Take precise action today to right-size your next orthogonal-axis drive for absolute peak performance.
A: Industry standard practice limits single-stage spiral bevel reductions strictly to 6:1. Going beyond this mathematical limit forces the pinion to have too few teeth, typically under 12. This compromises the contact ratio, drastically reduces mechanical strength, and increases the risk of premature failure.
A: Yes, they operate in both directions. However, engineers must account for sudden changes in axial thrust. Because the specific spiral angle dictates thrust direction, reversing the rotation will immediately shift the thrust load to the opposite bearing set.
A: During final manufacturing, the pinion and ring gear are lapped together. They run continuously with an abrasive compound to create a perfectly mated contact patch. Mixing parts from different sets destroys this highly specific geometry, leading to instant noise and rapid mechanical failure.
