Designing power transmission in space-constrained environments forces engineers to turn corners. You often need reliable 90-degree angle configurations. However, not all right-angle setups handle high torque and continuous duty equally well.
A common point of confusion lies in semantic clarity. A right-angle drive merely changes direction. It typically maintains a 1:1 ratio. In contrast, a right-angle reducer simultaneously lowers RPM and multiplies torque. Choosing the wrong mechanism often leads to catastrophic mechanical failures.
We will explore why you should consider specific gear mechanisms for demanding industrial applications. You will learn about mechanical efficiency, torque capacities, and spatial advantages. We will introduce premium solutions for situations where performance is non-negotiable. They easily outperform lower-cost but less efficient alternatives.
Rolling vs. Sliding Friction: Bevel gear reducers utilize rolling friction (achieving up to 98% efficiency), overcoming the sliding friction heat losses inherent in worm gears.
Torque Density: A spiral bevel gear reducer delivers higher torque output in the same footprint compared to competing gear types.
Lifecycle Cost: While initial capital expenditure is higher, bevel gears reduce energy consumption, minimize thermal wear, and extend mean time between failures (MTBF).
Architectural Flexibility: Bevel designs easily accommodate hollow shaft configurations and hybrid pairings with planetary stages.
Fitting robust power transmission into tight footprints presents major challenges. You see this constantly in conveyors, robotics, and printing presses. Space constraints dictate physical machine design. You must turn power at exactly 90 degrees. This spatial requirement demands specialized mechanical solutions. You cannot simply install large inline motors everywhere.
We generally categorize right-angle approaches into two physical types. They involve either orthogonal or skew axes. Orthogonal axes intersect directly. This geometry defines bevel gear technology. Their central axes cross directly at a single mathematical point. Forces align efficiently through this intersection. This direct alignment minimizes wasted mechanical energy. Skew axes do not intersect. They feature an axis offset. Worm gears and hypoid gears utilize skew axes. Their axes cross in space but never physically touch.
Turning a corner inevitably generates complex mechanical forces. You cannot escape this physical trade-off. Redirecting torque inevitably creates high axial forces. It also produces significant radial forces. These internal stresses push heavily against the gear housing. Premium gearboxes rely on heavy-duty internal bearings. Large tapered roller bearings absorb these destructive forces. They prevent the metal housing from deflecting under load. Deflection causes immediate gear misalignment. Properly sized bearings maintain perfect mesh and ensure long-term stability.
Friction types heavily influence overall gearbox performance. Sliding friction forces metal surfaces to rub continuously. This rubbing generates extreme heat. It also destroys mechanical efficiency. Rolling friction operates much cooler. Bevel Gear Reducers rely primarily on rolling tooth engagement. Their teeth mesh and roll against each other. They do not drag across opposing surfaces. This rolling action prevents severe power loss at the source.

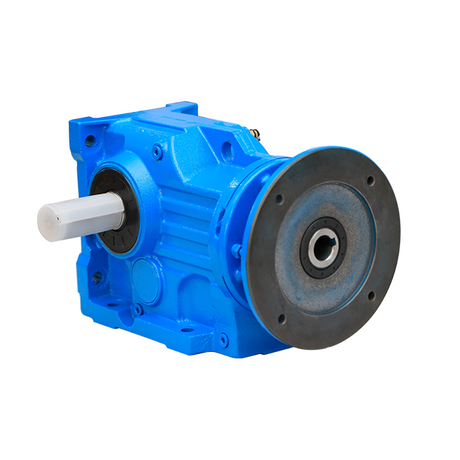

You must carefully choose between straight and spiral tooth profiles. Straight bevel units work well for low speeds. They handle anything under 1000 RPM adequately. However, they generate significant noise at higher speeds. Sudden tooth engagement limits their torque capacity. Conversely, a Spiral Bevel Gear Reducer utilizes superior geometry. The teeth feature curved, oblique profiles. This curvature allows gradual, progressive tooth engagement. Multiple teeth share the physical load simultaneously. This specific design handles aggressive loads effortlessly. It operates smoothly and quietly at high rotational speeds. It also heavily resists sudden shock loading during heavy operations.
Operational efficiency defines continuous-duty servo applications. Heavy industrial automation requires flawless power transmission. Spiral designs typically achieve 95% to 98% efficiency. They convert nearly all input power into usable output torque. They dissipate very little electrical energy as ambient heat. This high efficiency proves why engineers specify them for critical machinery. You specify them when thermal stability remains strictly non-negotiable.
Comparing common right-angle solutions helps guide buyer evaluation. You must weigh initial costs against operational capabilities. Let us examine the low-cost baseline first.
Worm gear reducers dominate budget-conscious projects. They offer extreme single-stage reduction ratios. You can easily achieve up to 100:1 ratios in one box. They carry a very low initial purchase price. They also provide natural self-locking properties. They resist back-driving inherently. However, they suffer from critical operational weaknesses. High sliding friction dominates their internal movement. Rapid heat generation occurs constantly. Mineral oil setups often cap operating temperatures at 90°C. Mechanical efficiency drops sharply as the reduction ratio increases. Furthermore, the softer bronze gear wheel experiences rapid wear over time.
Bevel solutions provide a high-yield upgrade path. They generate negligible heat during continuous operation. Power translation remains near-perfect from motor to load. They require very low routine maintenance. Highly durable steel-on-steel construction ensures exceptional longevity. However, they also possess distinct engineering limitations. Single-stage ratios face strict physical caps. They typically max out around 6:1. Upfront manufacturing costs remain significantly higher due to complex machining.
Maintenance realities provide a crucial experience marker. You must understand long-term repair protocols clearly. If a bevel unit fails, you face strict replacement rules. You must replace the gears as a matched pair. Manufacturers precision-lap these gears together during production. Lapping ensures perfect mesh patterns and zero backlash. Replacing just one gear destroys this delicate alignment. Worm gear setups prove much simpler to repair. You often just replace the worn bronze wheel.
| Operational Feature | Worm Gear Reducers | Bevel Gear Reducers |
|---|---|---|
| Friction Mechanism | Sliding Friction | Rolling Friction |
| Mechanical Efficiency | Low to Moderate (Drops sharply at high ratios) | Very High (95% to 98%) |
| Thermal Output | Very High (Often requires thermal caps) | Negligible |
| Max Single-Stage Ratio | Up to 100:1 | Typically 6:1 |
| Self-Locking Ability | Yes (At high ratios) | No (Easily back-driven) |
| Repair Protocol | Replace single bronze wheel | Replace as factory-matched pairs |

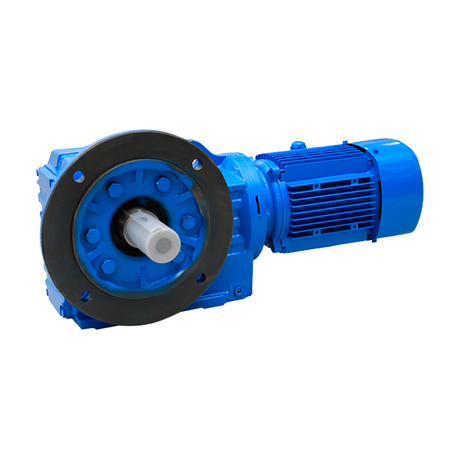

You must eventually overcome the strict 6:1 single-stage ratio limit. Applications often require substantial speed reduction. Engineers achieve high ratios without sacrificing mechanical efficiency. They pair right-angle stages with secondary planetary gearboxes. You can place the bevel stage at the input side. You can also place it at the output side. This hybrid setup unlocks massive ratio combinations. You maintain the 98% efficiency of the initial turn while achieving massive torque multiplication.
Hollow shaft capabilities offer tremendous architectural flexibility. Bevel geometry naturally creates space for hollow output shafts. This physical design solves complex routing problems immediately. It allows crucial elements to pass completely through the gearbox. You can route electrical power cables through the center. You can run pneumatic cooling lines internally. You can even pass solid machine shafts directly through the unit. This eliminates external cabling and creates a cleaner machine footprint.
Mounting orientations introduce significant implementation risks. You cannot mount these units arbitrarily. Horizontal mounting serves as the standard industry approach. It ensures oil naturally coats all internal components. Vertical mounting requires careful engineering verification. You must analyze internal lubrication pathways thoroughly. Gravity constantly pulls oil away from upper bearings. Dry running at the top bearings causes rapid, catastrophic failure.
Environmental compliance heavily influences your final specification. Harsh industrial environments destroy standard gearboxes quickly. Washdown-ready stainless steel housings protect against moisture. IP69K ratings ensure the unit withstands high-pressure, high-temperature cleaning. Food processing lines strictly require H1 or H2 food-grade grease compatibility. You must match the housing material to the specific environmental threat.
Proactive maintenance extends the operational life of your mechanical systems. You must train your teams to identify warning signs early. Ignoring subtle mechanical changes inevitably leads to catastrophic equipment failure. A well-structured troubleshooting protocol saves critical production time.
Provide this proactive checklist for your maintenance personnel:
Monitor for Overheating and Leaks: Excessive internal pressure often compromises rubber seals. Failed seals lead directly to fluid leaks. You must address external temperature spikes immediately. High heat breaks down lubrication rapidly.
Check for Misalignment Issues: Misaligned shafts cause highly uneven tooth wear. They also generate an obvious acoustic whining noise. Proper alignment extends internal bearing life and prevents sudden catastrophic binding.
Evaluate Unexpected Loads: Machinery occasionally experiences severe shock loads. Sudden impacts can easily exceed rated radial and axial bearing capacities. You should inspect bearings for pitting or spalling after any major machine jam.
Regular oil analysis also provides valuable diagnostic data. Microscopic steel particles in the fluid indicate abnormal gear wear. Clean oil ensures the internal rolling friction remains highly efficient.
We can make a definitive final assessment regarding right-angle configurations. Bevel systems remain the absolute best choice for demanding applications. They excel when you prioritize torque transmission and pure energy efficiency. Their thermal stability vastly outweighs their higher initial manufacturing cost. You should choose them over cheap, single-stage worm reductions for heavy automation. They simply perform better under continuous, heavy loads.
Specifiers should follow concrete next steps before requesting quotes. First, audit your current spatial constraints thoroughly. Second, calculate your precise radial and axial load requirements. Finally, consult directly with a qualified manufacturer. You must define your exact right-hand versus left-hand rotation needs. Understand your A-Bore and B-Bore dynamics clearly to ensure a perfect installation.
A: Yes. Because they do not self-lock, bevel boxes can often be back-driven. You can intentionally configure them as speed increasers. Unlike high-ratio worm gears, they translate power efficiently in reverse. You must simply ensure the increased RPM stays within the thermal and bearing limits of the unit.
A: Both represent high-efficiency right-angle setups. However, hypoid gears feature a vertical axis offset. The pinion sits slightly above or below the center line of the crown wheel. This offset allows for higher single-stage ratios and quieter operation, but it introduces minor sliding friction.
A: Manufacturers lap spiral bevel gears together during final production stages. This precision lapping ensures perfect mesh patterns. It also guarantees zero-backlash operation. Replacing only one gear destroys this critical alignment. A mismatched gear will cause severe vibration and immediate mechanical failure.
A: No. Due to their extreme mechanical efficiency and rolling contact, they will back-drive freely if power is removed. They cannot hold a suspended load independently. Applications requiring a secure holding state must integrate external mechanical brakes into the drive train.
