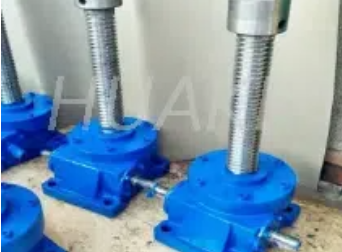

Worm gear screw jacks are mechanical devices designed to lift, lower, or position heavy loads with precision and ease. They are commonly used in industries that require controlled movement, such as manufacturing, construction, automotive, and aerospace. A worm gear screw jack combines the principles of a worm gear with a threaded screw, providing a reliable solution for lifting and positioning applications. Its robust design, self-locking feature, and ability to handle high loads make it an essential tool in many industrial operations. The following sections explore the fundamental characteristics and performance features that make the worm gear screw jack such an invaluable mechanical tool.
A worm gear screw jack consists of a worm gear (a gear that looks like a screw) and a screw that threads through a nut to raise or lower a load. The worm gear interacts with the threaded screw to convert rotational movement into linear motion, making it ideal for applications requiring vertical movement or lifting.
The working principle of the worm gear screw jack is simple but effective. When the worm gear is rotated, it causes the screw to rotate as well, leading to the movement of the nut along the threads of the screw. This movement either raises or lowers the load depending on the direction of rotation. The gear mechanism allows for a high level of precision and control, ensuring that even heavy loads can be moved steadily and securely.
One of the key benefits of this design is that the worm gear system has a built-in self-locking feature. This means that when the drive is stopped, the gear mechanism prevents any unwanted backdriving, ensuring the load remains stationary. This self-locking capability enhances safety, particularly when dealing with large and heavy objects.
The worm gear screw jack is composed of several essential components that work in harmony to achieve efficient lifting and precise positioning. Understanding these parts is crucial to appreciating how the entire mechanism functions reliably in various industrial applications. Below are the main components of a typical worm gear screw jack:
The worm gear, typically crafted from high-quality, hardened metal, features a helical shape that meshes precisely with the teeth of the worm shaft. This interaction is fundamental as it converts rotary motion from the worm shaft into the linear motion required for lifting or lowering loads. The worm shaft itself is usually connected to a motor or manual handwheel, delivering the rotational force that drives the lifting operation. The unique design of the worm gear and shaft also contributes to the jack’s self-locking feature, preventing the load from slipping back under gravity.
A critical part of the mechanism, the threaded screw is responsible for the actual movement of the load—either lifting or lowering it. This screw is generally made of strong, wear-resistant materials such as alloy or carbon steel to withstand heavy loads and continuous use. The screw features precision-cut threads that engage with a corresponding nut, creating a screw-and-nut system that enables accurate and controlled positioning of the load.
The nut rides along the threads of the screw and supports the weight of the load as it moves. It is engineered to handle high loads and ensure smooth motion without excessive wear. The housing encloses the worm gear, screw, and nut, protecting these components from dust, debris, and mechanical damage while also maintaining precise alignment. This secure containment ensures stable operation even under heavy or fluctuating loads.
The frame acts as the backbone of the worm gear screw jack, providing structural integrity and stability to the entire assembly. It houses the internal components such as the gear assembly, screw, and nut, while also offering a stable base for mounting. The support structure is designed to absorb stresses and vibrations, enabling smooth, safe operation and extending the service life of the jack. Robust construction materials and precise manufacturing tolerances in the frame ensure that the jack maintains alignment and performs reliably during lifting tasks.
When evaluating the performance of a worm gear screw jack, there are several key performance indicators that should be considered to ensure the device meets the specific needs of an application.
The load capacity of a worm gear screw jack refers to the maximum weight or load that the device can safely lift or support. This is one of the most important performance parameters, as it determines whether the jack is suitable for the specific application. The rated load is typically given in kilograms or tons and should match the weight of the items being lifted.
The self-locking nature of the worm gear screw jack is one of its most valuable features. When the motor or handwheel is stopped, the worm gear prevents the load from descending due to the friction between the gear teeth and the screw threads. This prevents the load from slipping and provides an additional layer of safety when using the jack.
The stroke length is the distance the nut travels along the screw as the gear rotates. The adjustment range indicates how far the load can be lifted or lowered. These factors are essential for applications that require precise movement of the load, as they determine how much vertical movement the jack can provide.
The speed at which the worm gear screw jack raises or lowers a load is an important factor to consider, especially in time-sensitive operations. Efficiency is also an important consideration—whether the jack consumes excessive power to lift a load or operates in a way that maximizes energy savings. Typically, these devices are designed to balance power consumption with lifting speed to provide optimal performance.
The materials used in the construction of a worm gear screw jack play a critical role in determining its strength, durability, and overall performance. The key material components include:
Worm gear screw jacks are typically made from high-quality materials such as carbon steel, stainless steel, and alloy steel. Carbon steel is often chosen for its excellent strength-to-weight ratio and cost-effectiveness, while stainless steel is used in applications requiring corrosion resistance, such as in outdoor environments or in industries like food processing.
To ensure long-term performance and reliability, worm gear screw jacks are often designed with coatings or finishes that enhance their resistance to corrosion and wear. This is particularly important in industries that deal with harsh conditions, such as chemicals or saltwater environments.
The manufacturing of worm gear screw jacks requires precise machining to ensure that all components fit together accurately and function smoothly. Strict quality control processes are followed to verify that each device meets the required specifications and performance standards. This ensures the longevity and safety of the screw jack in its intended application.
The worm gear screw jack is an essential tool for industries that require heavy lifting and precise positioning. Its compact design, high load capacity, self-locking mechanism, and exceptional performance under harsh conditions make it a top choice in various industrial sectors. Built with durable materials and precision-engineered for reliability, these jacks ensure efficient and safe lifting in challenging environments.
Whether used in manufacturing, construction, or other heavy-duty operations, the worm gear screw jack provides outstanding versatility and dependability. Its self-locking mechanism ensures safety, while its ability to handle substantial loads makes it invaluable for critical applications.
For businesses seeking high-quality, reliable lifting solutions, Qingdao Chinese Science Machinery Co., Ltd. offers top-of-the-line worm gear screw jacks. With a focus on precision manufacturing and exceptional quality control, Qingdao Chinese Science Machinery provides products that meet the highest industry standards. Visit their website or contact their team to learn more about how their advanced lifting solutions can enhance your operations and help you achieve greater efficiency and safety.
