What helps a machine return accurately to the same position under changing loads? A precision Planetary Gear Reducer supports controlled motion through low backlash, torsional stiffness and compact torque transmission. In this article, you’ll learn how these features, proper selection and system integration influence positioning performance.
Backlash is the clearance that becomes noticeable when rotation changes direction. The input can move slightly before the output responds. A low backlash planetary gear reducer limits this reversal gap. This matters in indexing and repeated positioning. However, low backlash does not establish zero lost motion or guarantee complete axis accuracy.
A gearbox can twist elastically while transmitting torque. This deflection changes the load’s position even after gear clearance is taken up. Greater torsional stiffness reduces that movement under comparable loading. Evaluate stiffness alongside backlash when selecting a precision drive. They describe different effects and require separate specifications.
Several planet gears participate in transmitting torque between the central gear and surrounding ring. This arrangement supports compact torque transmission. Actual load sharing depends on geometry, manufacturing accuracy and supporting components. High torque density can help space-constrained axes. It does not independently establish the precision required for a positioning task.
Reduction lowers output speed while increasing available torque, subject to transmission losses. It also changes the load inertia reflected to the motor. For a simple transmission, reflected load inertia decreases by the ratio squared. Evaluate this benefit alongside motor speed and cycle time. An unnecessarily high ratio can restrict the required output speed.
Inline planetary arrangements align the input and output axes. This can simplify packaging around selected servo-driven mechanisms. Designers must still provide room for connections, supports and maintenance access. Shaft and flange outputs create different mounting opportunities. Choose the interface around the driven mechanism rather than available space alone.

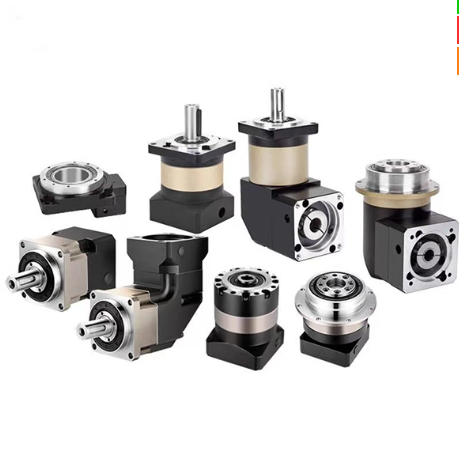

Precision motion depends on gear accuracy, bearing arrangements and controlled assembly. These factors influence transmission consistency and response under load. HUAKE’s Precision Planetary Gearbox is presented for automation and positioning applications. Request model-specific backlash and stiffness data before approval. General planetary construction does not establish a particular precision grade.
Tip： Specify backlash, torsional stiffness and positioning requirements separately when requesting a quotation.
Angular backlash describes clearance under a defined measurement procedure. Lost motion can include additional effects, depending on the test method. Compare supplier values only after confirming their definitions and conditions. Ask whether measurements include elastic deformation under applied torque. Similar numbers may describe different behavior if testing procedures differ.
Accuracy describes how closely the load reaches its commanded position. Repeatability describes how consistently it returns to a position. A machine can repeat an offset position without being accurate. Define both requirements for the actual process. Include approach direction because reversing movement can expose errors hidden during one-direction testing.
Gearbox stiffness represents only one part of the mechanical chain. Couplings, brackets, shafts and driven components can also deform under load. A stiff reducer cannot eliminate flexibility elsewhere. Review the complete axis when investigating position errors. Strengthening a weak mounting bracket may matter more than selecting another gearbox grade.
Catalog values apply to defined models and measurement conditions. Ratio, stage count, temperature and loading can influence the comparison. The Laitch reference lists backlash and stiffness separately across its configurations. Use this as a reminder to request configuration-specific information. Validate motion after warm-up rather than relying only on initial inspection results.
A planetary gear reducer for robotics can suit selected handling and transfer axes. Compact torque transmission helps where installation space is limited. Assess acceleration, reversals and the output loads created by the mechanism. Different robot joints impose different demands. Confirm suitability for the particular axis instead of generalizing across an entire robot.
A planetary gear reducer for CNC machines may serve suitable feed or auxiliary positioning arrangements. Rack-and-pinion mechanisms require evaluation of the entire transmission. Gearbox backlash, pinion engagement and structural flexibility all influence the result. Define acceptable load-side error before selection. A reducer’s precision designation cannot establish the finished machine’s accuracy.
Indexing stations must move between positions and remain stable during dwell periods. Changing loads can affect the final output angle. Check backlash, stiffness and output-bearing capacity together. Evaluate stopping behavior and settling time under representative loading. A station that positions correctly without tooling may behave differently after production equipment is installed.
Packaging axes often repeat acceleration and deceleration throughout a production shift. Their drives must satisfy both dynamic and duty-related requirements. Check peak torque alongside continuous operating limits. Evaluate the complete movement sequence, including synchronization and reversals. Successful testing at constant speed does not establish performance during rapid cyclic operation.
Begin with travel, output speed, acceleration and cycle time. Calculate the corresponding motor speed across the complete cycle. Then assess torque requirements and transmission losses. HUAKE’s planetary gear reducer range separates P series and precision planetary products. Choose the appropriate product family before comparing individual ratios.
Continuous torque and short-duration peak torque describe different operating demands. Repeated acceleration peaks must follow the manufacturer’s permitted duty conditions. Emergency events require separate assessment where relevant. Avoid applying a general overload multiplier across all configurations. Document the expected frequency and duration of each load condition before approving the reducer.
Planetary gear reducer inertia matching requires more than the driven load’s mass. Include rotating transmission components and the gearbox’s own input inertia. Follow the servo manufacturer’s selection guidance when assessing the resulting relationship. There is no universal inertia-ratio target for every axis. Verify the design through response and settling tests.
Check motor shaft diameter, pilot dimensions, flange pattern and clamping arrangement. Confirm assembly tolerances before manufacturing mounting parts. At the output, assess radial, axial and tilting-moment loads where applicable. These loads can affect bearing selection independently of torque. Provide a drawing showing connection positions and distances from the output interface.
Tip： Send the complete motion profile and mechanical drawing when requesting servo gearbox selection support.

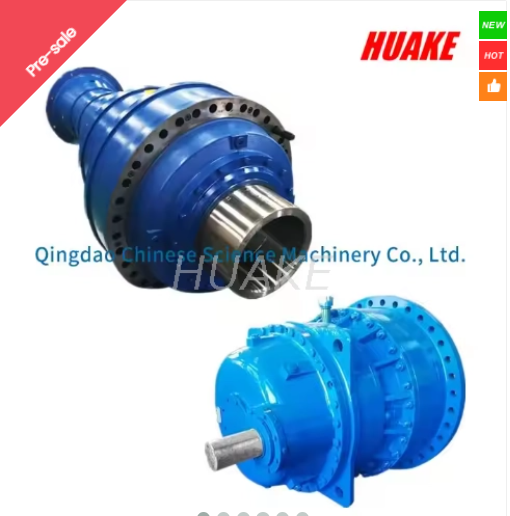

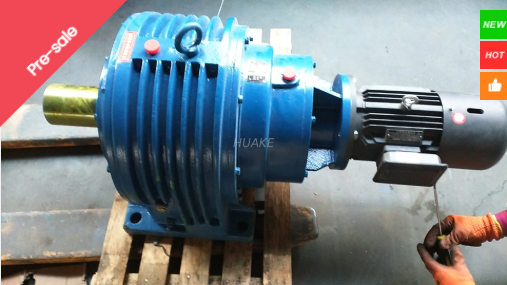

Stage count affects available ratios, packaging and performance specifications. Additional stages introduce additional mechanical losses and design considerations. Compare each configuration using its own ratings. HUAKE’s P Series Planetary Gearbox NGW72–112 illustrates an industrial planetary product family. Do not transfer industrial torque capabilities into unverified precision-motion claims.
Spur and helical planetary arrangements introduce different engagement and bearing considerations. Helical gearing produces axial forces that the design must accommodate. Compare noise, loading and documented precision characteristics together. Tooth form alone cannot determine positioning performance. Select using model-specific evidence covering the intended speed and duty cycle.
Shaft outputs and flange outputs connect differently to the driven mechanism. Compare connection stiffness, assembly space and permissible output loads. A flange arrangement may simplify some rotary assemblies. Other mechanisms may favor a shaft connection. Evaluate the entire interface, including fasteners and adapters, before choosing a configuration.
Direct drives, strain-wave reducers and cycloidal arrangements may suit different motion requirements. Compare ratio, loading, available space and precision needs. A planetary gearbox is one option within that assessment. Industrial planetary units also serve different priorities from precision servo products. Match the architecture to the application’s complete performance specification.
Follow the specified mounting and shaft-insertion procedures during assembly. Incorrect alignment or clamping can undermine the selected gearbox’s performance. Check brackets, couplings and output connections before adjusting control settings. Inspect the mounting structure under representative load. Mechanical looseness should be corrected before tuning begins.
Servo tuning should reflect the installed gearbox and driven mechanism. Assess overshoot, resonance and settling behavior across the intended operating cycle. Tuning an unloaded motor provides limited information about the finished machine. Record successful settings alongside the tested configuration. Changes to load inertia or mechanics may require another evaluation.
Motor-side feedback reports position at the motor rather than directly measuring the driven load. Gearbox and structural effects remain between those points. Load-side feedback may be useful where the application requires it. However, feedback cannot remove mechanical load limits or excessive flexibility. Assess the measurement and control arrangement as part of the complete axis.
Follow the selected model’s lubrication and maintenance requirements. Establish baseline temperature, vibration and motion results after commissioning. Investigate changes in reversal behavior or repeatability during service. Compare measurements under similar loading and temperature conditions. This makes developing problems easier to distinguish from normal operating variation.
Tip： Low gearbox backlash cannot compensate for loose connections, flexible supports or unsuitable control settings.
Provide torque demands, load inertia, motion profile and environmental conditions. Define accuracy, repeatability and settling requirements independently. Include the installation drawing and expected service duration. These details help suppliers assess the complete task. A request for a high-precision gearbox alone leaves important selection decisions unresolved.
| Requirement | Information to specify | Verification approach |
|---|---|---|
| Reversal response | Permitted backlash or lost motion | Compare compatible test definitions |
| Loaded position stability | Torque range and stiffness needs | Measure deflection under representative loading |
| Positioning accuracy | Allowable load-side position error | Compare commanded and measured positions |
| Repeatability | Permitted variation across repeated moves | Repeat approaches from both directions |
| Dynamic response | Acceleration, cycle and settling requirements | Test the complete motion profile |
| Mechanical compatibility | Interfaces and output loads | Review drawings and installed connections |
Identify the exact ratio, stage count and precision grade in each proposal. Request the conditions supporting efficiency, backlash and stiffness values. Resolve differences between general descriptions and detailed specifications. Avoid combining the strongest figures from unrelated models. The approved quotation should describe the configuration actually being supplied.
Measure positioning and repeatability using approaches from both directions. Repeat tests after warm-up and under representative loads. Include acceleration, stopping and dwell periods from the production cycle. Inspect settling behavior alongside final position. This reveals errors that may remain hidden during slow, unloaded or one-direction testing.
Compare purchase price alongside integration, tuning, maintenance and replacement costs. A tighter backlash grade adds little value if another component dominates the error. Equally, insufficient stiffness can create expensive commissioning problems. Choose the configuration that satisfies the complete axis requirement. Use test results to support the investment decision.
A precision Planetary Gear Reducer supports accurate motion through low backlash, torsional stiffness and compact torque transmission. Correct sizing, rigid mounting and suitable control integration help deliver repeatable positioning under changing loads. HUAKE offers precision planetary gearboxes, supported by application selection, customization and technical assistance. These services help buyers match gearbox configurations to their motion requirements. Validate the complete axis through loaded, bidirectional testing before approval.
A: A precision Planetary Gear Reducer offers low backlash and torsional stiffness.
A: Match the Planetary Gear Reducer to torque, speed, inertia and positioning requirements.
A: Planetary Gear Reducer pricing depends on size, ratio and precision grade.
A: Positioning accuracy also depends on mounting, stiffness and feedback.
A: Motion control errors can involve backlash, looseness or deflection.
