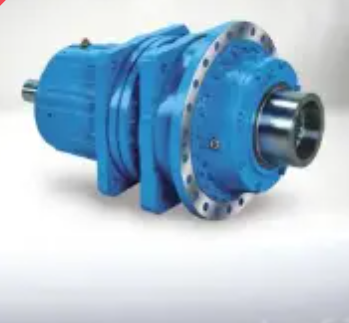

How to Choose a P Series Planetary Gearbox for High-Torque Industrial Equipment

Introduction

A powerful motor does not guarantee correct gearbox selection.

A P Series Planetary Gearbox must handle actual torque, ratio, duty, shaft loads, and mounting conditions. High-torque machines can overload an incorrectly sized reducer very quickly.

This guide explains how to select the right gearbox step by step.

How to Choose a P Series Planetary Gearbox Step by Step?

Planetary gearbox selection should begin with the driven machine.

Do not start by choosing a gearbox size from a catalogue. First define what the equipment requires during normal and extreme operation.

Step 1 — Define the Equipment and Load Profile

Start by identifying the driven equipment.

It may be a crusher, conveyor, mixer, mill, hoist, or mining machine. Each machine creates different torque patterns.

Record whether the load is:

• Steady

• Variable

• Impact-heavy

• Reversing

• Cyclic

Then determine continuous torque, startup torque, and peak torque.

Operating hours also matter.

A gearbox running continuously needs different thermal capacity from one running intermittently.

The same motor can therefore require different gearbox sizes.

HUAKE states that its P Series planetary reducers are used across metallurgy, mining, lifting, transportation, energy, building materials, and related industrial sectors.

You can review the broader range through the HUAKE planetary gearbox category.

Step 2 — Calculate the Required Output Torque

Torque is the most important starting value.

When power and shaft speed are known, use:

Torque (Nm) = 9550 × Power (kW) ÷ Speed (rpm)

Assume a machine needs 90 kW at 40 rpm.

The theoretical operating torque becomes:

9550 × 90 ÷ 40 = 21,487.5 Nm

This is only the continuous operating torque.

You still need to check startup and peak loads.

A crusher may experience impact torque.

A mixer may face sudden material resistance.

A loaded conveyor may demand much more torque during startup.

Never size the gearbox using only normal running torque.

Step 3 — Apply the Correct Service Factor

The P Series planetary gearbox service factor adjusts selection for real operating severity.

A smooth conveyor and an impact-loaded crusher should not use the same factor.

Consider:

• Daily operating hours

• Starts per hour

• Shock severity

• Reversing frequency

• Braking

• Driven-machine inertia

• Load variation

Use:

Design Torque = Operating Torque × Service Factor

If operating torque equals 20,000 Nm, an illustrative service factor of 1.5 gives:

20,000 × 1.5 = 30,000 Nm

The 1.5 figure is only an example.

The final factor must come from the selected manufacturer's technical data.

Tip： Always send the supplier your worst realistic load condition, not only normal operating data.

Step 4 — Select the Required Planetary Gear Ratio

Next, calculate the required reduction ratio.

Use:

Gear Ratio = Input Speed ÷ Required Output Speed

Suppose the motor runs at 1,500 rpm.

The driven machine needs 30 rpm.

The theoretical ratio becomes:

1500 ÷ 30 = 50

You should then compare this value with available standard ratios.

If the exact ratio is unavailable, choose the closest suitable option.

Then recalculate actual output speed.

Never assume a higher ratio is automatically better.

Too much reduction can make the machine too slow.

It may also change gearbox size and thermal loading.

Step 5 — Verify Input Power and Torque Rating

Now compare motor power against gearbox capacity.

The selected P Series planetary gearbox torque rating must support continuous design torque.

Peak torque should be checked separately.

HUAKE lists broad series-level P Series capabilities reaching up to 2,600,000 Nm output torque. The company also lists motor power from 0.4 to 12,934 kW and output speeds from 0.19 to 60 rpm. These are series-wide values, not ratings for every model.

The HUAKE P Series Planetary Gearbox page provides the main product overview.

Always verify the exact size, ratio, and duty before ordering.

Step 6 — Check Shaft Loads and Output Configuration

Torque capacity alone is not enough.

The output shaft may also carry radial and axial forces.

Common sources include:

• Sprockets

• Pulleys

• Gears

• Drums

• Couplings

These loads act directly on bearings and shafts.

The selected gearbox must support them safely.

You should also confirm the required output connection.

Options may include solid shafts, splined shafts, flange connections, or other arrangements.

HUAKE's P Series information lists foot and flange mounting plus solid and involute spline shaft arrangements.

Step 7 — Confirm Mounting and Thermal Conditions

A gearbox can pass the torque calculation and still fail thermally.

Check ambient temperature first.

Then review operating hours, input speed, cooling, and lubrication.

Mounting orientation also changes lubricant distribution.

Confirm:

• Horizontal or vertical position

• Oil quantity

• Breather location

• Cooling method

• Drain access

• Maintenance clearance

Tip： A mechanically adequate gearbox can still be undersized for continuous thermal duty.

How Much Torque Should a P Series Planetary Gearbox Handle?

A high-torque gearbox must survive more than steady running load.

You should separate continuous torque from short-duration peaks.

Continuous Torque vs Peak Torque

Continuous torque represents normal working load.

Peak torque occurs during temporary overloads.

These events can appear during startup, braking, material jams, or sudden impact.

For crushers and mills, peak torque can be especially important.

For conveyors, loaded startup often creates the highest demand.

For hoists, acceleration and braking must also be considered.

The gearbox should therefore meet both requirements.

Calculate Design Torque

Design torque gives a better basis for initial selection.

Use:

Design Torque = Operating Torque × Service Factor

This value helps identify a suitable gearbox size.

However, it does not replace peak torque verification.

The manufacturer's permissible overload limits must still be checked.

Consider Starting and Jam Loads

Do not assume the machine always starts unloaded.

A conveyor may stop while carrying material.

A mixer may restart with product already inside.

A crusher may encounter blocked material.

These conditions can create severe short-term loads.

Send them to the gearbox supplier during selection.

Check Radial and Axial Loads

Planetary reducers distribute internal gear loads effectively.

However, the output shaft still experiences external forces.

A large sprocket can create high radial force.

Helical gears can create axial thrust.

Check these loads against bearing and shaft limits.

How to Select the Right P Series Planetary Gearbox Ratio?

Ratio determines both speed reduction and torque multiplication.

It must match the machine process.

Match Input Speed to Output Speed

Begin with motor rpm.

Then define the required machine speed.

Calculate the theoretical ratio before reviewing models.

This avoids choosing a gearbox simply because a catalogue model looks suitable.

Check Torque Multiplication

A higher ratio generally increases available output torque.

However, real output also depends on efficiency.

Use model-specific data during final engineering calculations.

Do not estimate gearbox performance using ratio alone.

Avoid Excessive Reduction

More reduction is not always beneficial.

An excessive ratio can reduce machine speed too far.

It can also increase gearbox size or stage count.

The result may cost more without improving the process.

Consider Multi-Stage Reduction

High ratios may require several planetary stages.

Additional stages influence:

• Overall size

• Efficiency

• Heat

• Complexity

• Torque capacity

Use the supplier's ratio tables before final approval.

How Do Power, Efficiency, and Thermal Capacity Affect Selection?

Torque is critical, but power and heat also matter.

Match Motor Power to Gearbox Input Capacity

Check the installed motor kW.

Then verify the permitted gearbox input power.

The rating may change with ratio and input speed.

Do not apply one maximum catalogue value to every configuration.

HUAKE's P Series page publishes a broad motor power range. Final model selection still requires configuration-level verification.

Account for Transmission Efficiency

Some input power becomes internal loss.

Use:

Output Power = Input Power × Gearbox Efficiency

Planetary gearing distributes load across several gear meshes.

This can support high torque density in a compact structure.

HUAKE describes its P Series as using involute planetary transmission and power splitting. It also highlights compact size, high efficiency, smooth operation, and low noise.

Check Thermal Capacity

Mechanical losses become heat.

Continuous high-torque operation can therefore raise oil temperature.

Check:

• Ambient temperature

• Duty cycle

• Input speed

• Oil temperature

• Ventilation

• Cooling requirements

Heavy-duty mining or process equipment needs special attention.

Avoid Unnecessary Oversizing

A bigger gearbox may provide more torque margin.

It also adds cost, weight, and installation space.

Oversizing can complicate shafts and foundations.

The goal is an adequate safety margin.

It is not the largest possible gearbox.

Which Mounting and Output Options Matter for High-Torque Equipment?

Mechanical integration should be checked before procurement.

Foot, Flange, and Shaft-Mounted Arrangements

Check how the gearbox connects to the machine frame.

Foot mounting works well for many foundation-mounted systems.

Flange mounting can support compact integration.

The choice affects alignment and maintenance access.

Solid Shaft vs Hollow Shaft

Output configuration changes how torque reaches the driven machine.

A solid shaft can connect through couplings.

Splined arrangements can support high torque transmission.

Other projects may need hollow or special output structures.

Select the arrangement before ordering.

Horizontal vs Vertical Installation

Mounting orientation affects lubrication.

A gearbox designed for one position should not be rotated without checking requirements.

Oil level, seals, and breathers may need changes.

Motor and Input Connection

Check the motor interface carefully.

Record:

• Motor power

• Motor speed

• Shaft diameter

• Flange dimensions

• Coupling type

The reference selection material provided for this article also emphasizes torque, ratio, working conditions, input speed, and connection details during reducer selection.

Which Industrial Applications Need a High-Torque P Series Planetary Gearbox?

P Series reducers are suited to many heavy industrial drives.

The correct configuration depends on the load profile.

Crushers, Mills, and Mining Machinery

Mining equipment often experiences shock loading.

Continuous and peak torque must both be verified.

The service factor should reflect severe operation.

HUAKE specifically lists mining among P Series application sectors.

Mixers and Agitators

Mixers can experience changing resistance.

Startup torque may be much higher than running torque.

Thermal capacity also matters during continuous mixing.

Conveyors and Material Handling

A loaded conveyor can create high startup demand.

Sprockets also create radial shaft loads.

Check both torque and bearing capacity.

Hoists and Heavy Lifting Equipment

Lifting systems require careful dynamic-load calculations.

Starting, braking, and emergency conditions must be included.

The gearbox should never replace required braking equipment.

Common P Series Planetary Gearbox Selection Mistakes

Several mistakes repeatedly cause sizing problems.

Selecting Only by Motor Power

Motor kW does not define required output torque.

Speed must also be known.

Always calculate torque before selecting a model.

Ignoring Peak Loads

A gearbox may handle normal duty but fail during startup.

Include jam loads, braking, and impacts.

Choosing Ratio Before Defining Output Speed

The process determines required output rpm.

Calculate this requirement first.

Then select the gearbox ratio.

Ignoring External Shaft Loads

Large pulleys and sprockets create bearing forces.

Torque capacity does not confirm bearing capacity.

Verify both.

Ignoring Mounting Conditions

Incorrect orientation can affect lubrication.

It may also raise operating temperature.

Confirm mounting before production.

What Information Should You Send a Supplier Before Ordering?

A complete RFQ helps the supplier recommend the correct reducer.

Category	Information to Provide
Motor	Power, rpm, motor type, starting method
Equipment	Crusher, conveyor, mixer, hoist, or other machine
Torque	Continuous, startup, and peak torque
Speed	Required output rpm
Ratio	Calculated or target ratio
Duty	Operating hours and starts per hour
Shaft	Output type and external radial or axial load
Mounting	Foot, flange, horizontal, or vertical
Environment	Temperature, dust, moisture, outdoor use
Cooling	Natural or additional cooling requirement

You can review HUAKE's wider gearbox selection through the HUAKE product catalogue.

For a specific product reference, the P Series Planetary Gearbox NGW72-112 page identifies the NGW72-112 model within HUAKE's P Series range.

Conclusion

Choosing the right P Series Planetary Gearbox requires checking torque, ratio, service factor, shaft loads, mounting, and thermal conditions. Proper sizing improves reliability and avoids unnecessary oversizing.

HUAKE Gearbox provides planetary reducers for high-torque industrial equipment. Its P Series offers compact transmission, broad torque capability, flexible mounting, and application-focused selection support.

FAQ

Q: What is a P Series Planetary Gearbox?

A: A P Series Planetary Gearbox delivers high torque through compact planetary gear stages.

Q: How do you select a P Series Planetary Gearbox?

A: Choose a P Series Planetary Gearbox by torque, ratio, service factor, mounting, and duty.

Q: Why use a P Series Planetary Gearbox for high torque?

A: A P Series Planetary Gearbox offers high torque density and efficient power transmission.

Q: What affects P Series planetary gearbox price?

A: Cost depends on torque rating, ratio, size, mounting options, and customization.

Q: How do you choose the correct gear ratio?

A: Divide motor input speed by the required output speed.

Q: Why can a planetary gearbox overheat?

A: Overload, poor lubrication, high ambient temperature, or incorrect mounting can increase heat.
