Structural Types And Customization Options of Worm Gear Screw Jacks

Worm gear screw jacks come in a variety of structural types and offer extensive customization options to meet the diverse needs of industrial applications. Their adaptability and flexibility in design allow them to be tailored for specific load capacities, environmental conditions, installation constraints, and operational requirements. Understanding the different structural designs, mounting configurations, material choices, and available customization features is key to selecting the right worm gear screw jack for any application. This comprehensive overview explores the structural types and customization possibilities, demonstrating why worm gear screw jacks are highly versatile lifting and positioning solutions.

Types by Structural Design

Worm gear screw jacks are primarily categorized based on their structural design, which directly influences their performance, load capacity, and suitability for specific tasks. The simplest and most common type is the single-stage worm gear design, where a single worm and worm wheel mechanism converts rotational input into linear motion. This design offers compactness and efficiency for moderate load capacities and is widely used in many general lifting and positioning applications.

For higher load requirements or extended travel distances, multi-stage or combination designs are employed. These incorporate multiple worm gears or stages connected in series to multiply the mechanical advantage and extend the lifting range. Multi-stage worm gear screw jacks can handle heavier loads and provide finer control over large movements, making them ideal for demanding industrial environments like heavy manufacturing or large-scale construction.

Another important structural distinction lies in the type of screw used: fixed screw versus rotating screw designs. In fixed screw jacks, the threaded screw remains stationary while the nut moves along its threads to lift or lower the load. In contrast, rotating screw jacks have the screw itself rotate to achieve linear motion. Fixed screw designs typically offer higher load capacities and self-locking features, enhancing safety by preventing back-driving under load. Rotating screw designs, however, can provide faster lifting speeds and are better suited to applications requiring continuous screw rotation, such as conveyor height adjustments.

Mounting and Installation Options

The flexibility of worm gear screw jacks is clearly demonstrated by the wide variety of mounting and installation options they offer. Depending on the operational needs and spatial constraints of the machinery or structure where they are used, these jacks can be installed in vertical, horizontal, or inclined orientations. Vertical mounting is the most traditional and common method, especially for straightforward lifting tasks where the load moves directly up and down. This setup ensures stable load handling and ease of integration into many industrial processes.

Horizontal or inclined mounting configurations are also frequently employed when the jack is used for specialized positioning or adjusting roles rather than simple vertical lifting. For example, an inclined installation can provide controlled linear movement along a ramp or sloped surface, while horizontal mounting may facilitate fine lateral adjustments in assembly lines or structural alignment. This versatility enables worm gear screw jacks to be used in unconventional or complex systems where other lifting devices might be impractical.

Beyond orientation flexibility, worm gear screw jacks are available in both fixed and mobile configurations to suit diverse application demands. Fixed jacks are mounted securely to a stable base, frame, or foundation to provide a rigid lifting or positioning point. This type of installation is ideal for permanent setups where consistent, reliable operation is required over the long term. Fixed jacks are commonly found in manufacturing plants, construction frameworks, and heavy machinery supports.

In contrast, mobile worm gear screw jacks are designed for portability and ease of repositioning within a workspace. These models are often equipped with wheels, casters, or specially designed bases that allow operators to move the jack quickly and safely around factory floors, warehouses, or construction sites. The mobility factor significantly enhances operational flexibility, enabling a single jack to service multiple locations or jobs without the need for heavy lifting or disassembly.

Material Choices and Protective Coatings

Material selection is a fundamental aspect that directly impacts the durability, performance, and service life of worm gear screw jacks. Typically, manufacturers offer worm gear screw jacks made from carbon steel and stainless steel, each catering to specific needs and environmental conditions.

Carbon steel is widely used due to its excellent strength, machinability, and cost-effectiveness. It is well-suited for many general-purpose applications where extreme corrosion resistance is not a primary concern. Carbon steel jacks offer a robust structure capable of handling substantial loads and enduring repetitive use in relatively controlled environments, such as indoor manufacturing or assembly facilities.

Stainless steel worm gear screw jacks, on the other hand, provide superior corrosion resistance, making them the material of choice in harsh or demanding environments. These environments include chemical processing plants, marine settings with high exposure to saltwater, food and beverage industries requiring frequent washdowns, and outdoor installations subject to weather extremes. The inherent resistance of stainless steel to rust and corrosion ensures that the jacks maintain their integrity and smooth operation over extended periods, even in challenging conditions.

To further enhance protection against environmental factors, worm gear screw jacks can be equipped with various coatings and surface treatments. These include powder coatings that provide a durable and attractive finish resistant to abrasion and chemicals, galvanization processes that apply a protective zinc layer to prevent rust, and specialized paints designed to withstand UV exposure and harsh industrial atmospheres. Such treatments not only extend the jack’s lifespan but also reduce maintenance needs and downtime.

Customization Features

One of the most significant benefits of worm gear screw jacks is their high degree of customization, allowing end-users to tailor performance and features precisely to their application requirements. This customization ensures optimal efficiency, safety, and reliability, avoiding the drawbacks of one-size-fits-all solutions.

Load capacity and travel length are commonly customized parameters. Manufacturers can produce worm gear screw jacks to handle specific rated loads, matching the exact weight requirements of a project or machinery. Similarly, the stroke length or travel distance—how far the screw and nut move to raise or lower the load—can be tailored to fit installation constraints and operational needs. This ensures that the jack performs the required task without unnecessary size or complexity.

Safety enhancements through custom limit switches and overload protection devices are another critical customization area. Limit switches are electrical or mechanical devices installed to automatically stop the jack when it reaches predefined upper or lower travel limits. This prevents mechanical overextension, damage to the jack or load, and potential safety hazards. Overload protection systems detect when the applied force exceeds the jack’s rated capacity and halt operation to avoid structural failure or accidents. These safety features can be integrated seamlessly into the jack’s design, providing peace of mind and compliance with industry safety standards.

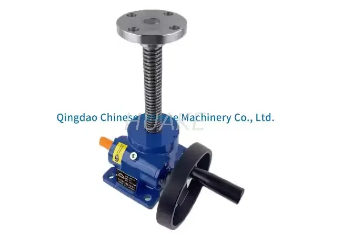

Customization also extends to the jack’s input shaft and coupling specifications. Depending on how the worm gear screw jack is powered—manual handwheel operation, electric motors, hydraulic or pneumatic actuators—the dimensions and types of shafts and couplings vary. Manufacturers work closely with customers to provide shafts and coupling systems that fit precisely into existing drive systems or control mechanisms, ensuring smooth integration and minimizing retrofitting challenges.

Summary

Worm gear screw jacks offer exceptional structural variety and extensive customization options, making them highly adaptable to a wide range of industrial challenges. Whether your project requires a compact single-stage design, a heavy-duty multi-stage assembly, fixed or rotating screws, vertical or horizontal mounting, or specialized materials and safety features, these jacks can be precisely engineered to meet your unique needs. This flexibility ensures optimal performance, enhanced safety, and long-lasting durability tailored specifically for your application. For businesses seeking reliable and customized lifting and positioning solutions, Qingdao Chinese Science Machinery Co., Ltd. stands out as a trusted partner. With advanced manufacturing capabilities and a commitment to quality, they provide expertly crafted worm gear screw jacks designed to boost efficiency and safety in any industry. Contact Qingdao Chinese Science Machinery Co., Ltd. today to learn how their tailored solutions can support your projects and operational goals.
