In the world of industrial lifting and mechanical positioning, worm gear screw jacks have become essential tools. Their combination of mechanical simplicity, high load-handling capacity, and precise positioning makes them indispensable in industries ranging from aerospace to manufacturing.
But what exactly is a worm gear screw jack? How does it work, and why is it often the preferred choice over hydraulic or electric actuators? In this detailed guide, HUAKE, a trusted manufacturer in mechanical lifting technology, explores the concept, design, advantages, and real-world applications of worm gear screw jacks.
A worm gear screw jack is a mechanical lifting and positioning device that transforms rotational motion into linear motion using a worm gear mechanism. It consists primarily of three components: a worm shaft, a worm gear, and a lifting screw (also called a lead screw or translating screw).
When the worm shaft is turned—manually, by motor, or via an external power source—it rotates the worm gear, which in turn drives the lifting screw up or down depending on the rotation direction. This mechanical interaction allows for precise vertical motion under heavy loads.
Worm Shaft: A screw-shaped shaft that drives the worm gear.
Worm Gear: A wheel gear with helical teeth that meshes with the worm shaft.
Lifting Screw: Converts rotational motion into linear lifting or lowering.
Housing: Encloses and supports all components, ensuring safe operation.
Optional Components: Limit switches, motors, anti-rotation systems, etc.
The worm and gear setup creates a high mechanical advantage, allowing the jack to lift heavy loads with relatively little input torque. The efficiency of the system is determined by the lead angle of the screw and the gear ratio. The self-locking nature of worm gear screw jacks—especially at higher gear ratios—ensures the load stays in place even when power is cut off, which is a key safety feature.
There are two common types of worm gear screw jacks:
Translating Screw Type: The lifting screw moves linearly through the housing.

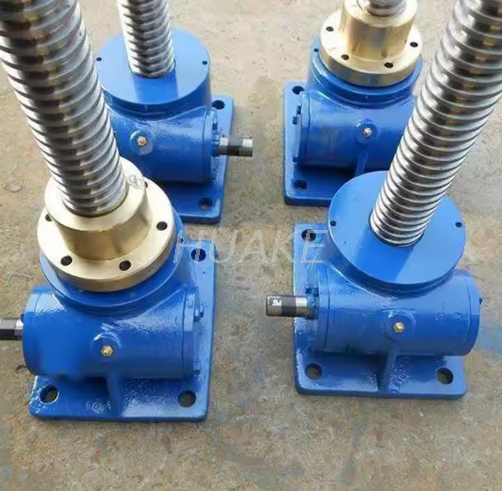

Rotating Screw Type: The screw remains stationary, and a traveling nut provides the linear motion.
One of the standout benefits of worm gear screw jacks is their ability to handle extremely heavy loads—often in the tens of tons—while maintaining high precision. This makes them ideal for industries that demand reliable, stable motion control.
Unlike hydraulic systems that require continuous pressure to hold a load, worm gear screw jacks offer mechanical self-locking, which eliminates the risk of accidental descent or movement. This safety feature is especially critical in vertical lifting applications.
Because the system relies on solid mechanical components rather than fluids or complex electronics, it is less prone to wear, leakage, or failure. With proper lubrication and periodic inspections, HUAKE screw jacks offer a long operational lifespan, even in harsh environments.
Worm gear screw jacks have found their way into a wide range of industries, thanks to their versatility, reliability, and safety.
Precision positioning of aircraft components during assembly and maintenance is a common application. Jacks are used to adjust wing positions or lift fuselages for inspections.
In high-temperature environments, screw jacks are used to adjust mold positions, open or close heavy gates, and align casting equipment.
For bridge construction, tunnel boring, or platform lifting, screw jacks provide stable, synchronized lifting with zero fluid leakage, making them environmentally friendly alternatives to hydraulics.
In sensitive environments, screw jacks provide quiet, vibration-free lifting, ideal for height-adjustable tables, MRI machines, or patient positioning systems.
With multiple options available, selecting the right worm gear screw jack depends on several important factors:
Determine the maximum load to be lifted or moved. HUAKE screw jacks range from light-duty (a few hundred kilograms) to ultra-heavy-duty (over 100 tons).
Consider how far the lifting screw needs to travel and how quickly. Higher travel distances may require special support or anti-rotation features.
From dusty construction sites to cleanroom labs, the jack's materials and sealing must suit the environment.
For continuous or frequent use, an electric motor might be required. For infrequent or emergency applications, a manual crank may suffice.
As a trusted provider of mechanical transmission solutions, HUAKE stands out in the market for its engineering precision, customization flexibility, and commitment to quality. Our worm gear screw jacks are:
Engineered to international standards
Tested for load and durability
Available in custom configurations
Supported by expert consultation and service
Whether you need a compact, corrosion-resistant jack for a lab table or a heavy-duty system for lifting industrial machinery, HUAKE delivers reliable solutions tailored to your exact specifications.
The worm gear screw jack is a cornerstone technology in modern lifting and positioning applications. With its robust construction, self-locking mechanism, and precise control, it offers a safe, reliable, and cost-effective alternative to hydraulic or pneumatic systems.
At HUAKE, we’re committed to providing industry-grade screw jacks that meet the highest standards of performance and safety. As your trusted partner in motion control, we’re ready to help you move the world—one screw turn at a time.
