Can the right ratio still produce the wrong gearbox choice?

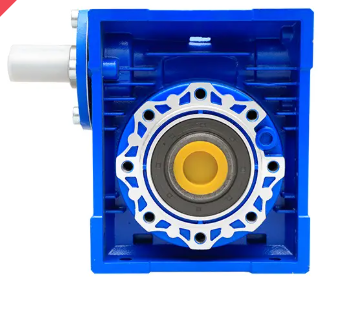

An NMRV Worm Gearbox must also match torque, motor power, frame size, and mounting position.
In this article, you will learn how to compare these factors and select a suitable reducer for your application.
Correct NMRV worm gearbox selection should begin with the driven machine.
Do not start by choosing NMRV50, NMRV75, or NMRV90. First define what the machine actually needs.
Identify the equipment connected to the gearbox.
Common applications include conveyors, packaging machines, mixers, agricultural equipment, and automated production lines.
Then record the duty conditions.
Check whether the load is continuous, intermittent, variable, or shock-loaded.
Also record:
Daily operating hours
Starts per hour
Reversing frequency
Loaded or unloaded startup
Ambient temperature
Two machines can use the same motor but need different gearbox sizes.
A lightly loaded packaging conveyor creates different conditions from a loaded mixer.
HUAKE lists NMRV units for compact industrial transmission applications requiring right-angle output. Its current NMRV range includes models from NMRV30 through NMRV150.
You can review the broader HUAKE Worm Gear Reducers range for related configurations.
Next, define the machine speed.
Record the actual motor rpm first.
Then determine the required output rpm.
Use:
Gear Ratio = Input Speed ÷ Required Output Speed
Suppose the motor operates at 1,500 rpm.
The machine needs approximately 60 rpm.
The theoretical ratio is:
1500 ÷ 60 = 25
A 25:1 reducer becomes the starting point.
Do not select the frame size yet.
First confirm whether the chosen ratio gives acceptable output torque.
Now compare the calculated ratio against available gearbox ratios.
HUAKE lists single-stage ratios from 7.5:1 to 100:1 for one of its aluminum worm gearbox ranges. Double-stage arrangements extend to higher overall reductions.
This range should be treated as HUAKE product data.
Other manufacturers may offer different combinations.
A supplied competitor example uses an NMRV090 unit at 25:1. It also pairs that configuration with a 2.2 kW motor and B3 mounting.
After choosing the nearest ratio, calculate output speed again.
Output Speed = Motor Speed ÷ Selected Ratio
If a 1,500 rpm motor uses 30:1:
1500 ÷ 30 = 50 rpm
Confirm whether 50 rpm suits the process.
Tip： Always confirm actual output rpm after selecting a standard gearbox ratio.
Output torque is another critical selection value.
If torque is not already known, use:
Torque (Nm) = 9550 × Power (kW) ÷ Speed (rpm)
Assume a machine requires 2.2 kW at 50 rpm.
The theoretical shaft torque is:
9550 × 2.2 ÷ 50 ≈ 420 Nm
This is only a starting estimate.
Real machines may require additional torque during startup.
Jams, reversing, or sudden load changes can also increase demand.
Separate:
Continuous torque
Starting torque
Short peak torque
The gearbox should satisfy the realistic load condition.
Motor power must suit the selected NMRV frame.
A smaller gearbox cannot accept every motor size.
HUAKE currently lists its NMRV worm gear units for motor powers from 0.06 kW to 15 kW across the overall series. It also lists rated output torque from 1.3 Nm to 879 Nm.
These are series-level values.
They do not apply to every ratio or frame size.
Always check the exact size-and-ratio combination.
For a direct HUAKE reference, see the Nmrv Worm Gear Units product page.
The gearbox must physically connect to the machine.
Check whether you need:
Hollow output
Solid output shaft
Single output shaft
Double output shaft
Output flange
Torque arm
IEC motor flange
Some suppliers also support combined NMRV arrangements.
HUAKE lists solid-shaft and flange-output configurations on one aluminum worm gearbox page. It also provides several NMRV and NRV combinations.
Confirm all shaft dimensions before ordering.
This is especially important during replacement projects.
Mounting position affects more than installation space.
It also changes oil distribution and heat dissipation.
HUAKE lists eight standard mounting positions for one aluminum worm gearbox range.
Before ordering, confirm:
Horizontal or vertical orientation
Motor position
Output shaft direction
Oil level
Ventilation
Maintenance clearance
Ambient temperature
Worm gearing creates sliding contact.
This can generate more heat under high load.
Continuous operation therefore requires careful thermal review.
Tip： A gearbox can meet torque requirements but still run too hot.
The correct ratio should achieve target output speed without creating unnecessary reduction.
Start with actual motor speed.
Do not use only the motor's nominal power.
Then define the driven machine's target speed.
For example:
Input speed: 1,400 rpm
Required output speed: 70 rpm
Required ratio:
1400 ÷ 70 = 20
A 20:1 ratio becomes the first candidate.
Standard ratios may not exactly match your calculation.
Recalculate the final rpm.
For example, changing from 20:1 to 25:1 produces:
1400 ÷ 25 = 56 rpm
That difference can affect production speed.
Packaging, conveying, and dosing systems can be sensitive to output rpm.
A higher ratio generally provides lower output speed.
It can also increase available output torque.
However, worm gearbox efficiency varies by ratio and operating condition.
HUAKE states single-stage efficiency of at least 85% for one NMRV product range at ratios from 10 to 100. This is manufacturer-specific data and should be verified for the selected model.
Do not choose the highest ratio simply to gain torque.
Sometimes one stage cannot provide enough reduction.
Combined arrangements can extend the ratio.
HUAKE lists NMRV+NMRV and NRV+NMRV options on its aluminum gearbox page.
Higher total ratios also mean more gear stages.
This can influence efficiency, heat, space, and cost.
Torque should be based on actual machine demand.
Use the driven shaft requirement.
Do not rely only on the motor nameplate.
A motor may have adequate power but still need a different ratio.
Always check torque after the ratio is selected.
Machines often require more torque during startup.
A conveyor may start while fully loaded.
A mixer may restart with material inside.
A packaging system may experience sudden resistance.
These conditions can exceed normal torque.
The selected NMRV unit must tolerate realistic peaks.
Larger NMRV frames usually support more torque.
They also use larger shafts and housings.
However, selecting the next size automatically is not always necessary.
Check the manufacturer's torque table first.
HUAKE's product portfolio includes NMRV30, 40, 50, 63, 75, 90, 110, 130, and 150 models.
Output torque is not the only load.
Sprockets and pulleys create radial force.
Some driven systems can also create axial force.
These forces affect gearbox bearings.
Check them during final engineering review.
Motor power and gearbox size must be checked together.
A small NMRV frame may not safely accept a large motor.
The allowable power also changes with ratio.
Use the supplier's size-specific table.
Do not use the maximum series power for every configuration.
Power alone does not define input torque.
A 1.5 kW motor at different speeds produces different torque.
Variable-frequency drives add another factor.
If the motor runs at low speed for long periods, cooling may also change.
A larger motor does not automatically improve reliability.
It may expose the reducer to higher overload torque.
Check motor starting behavior.
Also verify the gearbox's permissible input conditions.
Worm gears rely heavily on sliding contact.
Friction creates heat.
This becomes more important at higher loads.
HUAKE promotes its aluminum NMRV housings partly for reduced weight and improved heat dissipation.
Tip： For continuous duty, ask the supplier to verify thermal capacity, not only torque.
Mechanical compatibility should be confirmed before purchase.
Some NMRV units connect directly to IEC motors.
Others use an external shaft input.
Check:
Motor frame
Flange size
Shaft diameter
Input bore
Key dimensions
These dimensions must match exactly.
Different machines require different outputs.
A conveyor may use a solid shaft.
Another machine may need a flange connection.
Replacement projects should match the original arrangement where possible.
Mounting direction affects oil distribution.
It can also affect seals and breather positions.
Do not rotate the gearbox after delivery without checking its lubrication arrangement.
A shaft-mounted gearbox may need a torque arm.
Some applications require output covers or mounting flanges.
List these accessories in the RFQ.
NMRV numbers help identify the gearbox family.
They should not be the only selection factor.
Typical names include:
NMRV30, NMRV40, NMRV50, NMRV63, NMRV75, and NMRV90.
Larger models include NMRV110, NMRV130, and NMRV150.
A supplied competitor NMRV090 example identifies 090 as its center-distance family.
Dimensions should still be verified by drawing.
Frame size can affect:
Shaft diameter
Housing dimensions
Weight
Motor compatibility
Mounting holes
Torque capacity
Moving to a larger size can require machine modifications.
| Selection Item | What to Confirm |
|---|---|
| NMRV size | Housing and center-distance family |
| Ratio | Required speed reduction |
| Output speed | Actual machine rpm |
| Motor power | Permissible kW |
| Output torque | Running and peak load |
| Input | IEC flange or shaft input |
| Output | Hollow, solid, flange, or double shaft |
| Mounting | Horizontal or vertical orientation |
| Duty | Operating hours and starts |
| Environment | Temperature, dust, moisture |
Two products labeled NMRV90 may look similar.
Their details can still differ.
Check shaft sizes, flanges, keyways, and mounting holes.
Request a drawing before replacing an existing gearbox.
Correct output speed does not guarantee enough torque.
Always verify both.
Motor kW alone ignores ratio and machine load.
It also ignores operating duty.
Incorrect orientation can affect lubrication.
It may also increase temperature.
Add the mounting position to your purchase order.
Similar model numbers do not guarantee identical dimensions.
Check technical drawings before replacement.
A detailed RFQ helps reduce selection errors.
Provide the following data:
| Category | Information |
|---|---|
| Motor | Power, rpm, frame, flange, shaft |
| Machine | Conveyor, mixer, packaging line, or other equipment |
| Speed | Required output rpm |
| Ratio | Calculated target ratio |
| Torque | Running, startup, and peak torque |
| Input | Motor flange or shaft input |
| Output | Hollow, solid, flange, single, or double shaft |
| Mounting | Final installation position |
| Duty | Operating hours and start-stop frequency |
| Environment | Ambient temperature, dust, moisture |
You can compare related reducer families in the HUAKE product catalogue. The site currently groups NMRV aluminum reducers, RV worm reducers, and S Series worm reducers under its worm gearbox range.
For a specific aluminum configuration, the HUAKE NMRV Aluminum Worm Gear Box lists multiple frame sizes, mounting positions, ratios, and output configurations.
Selecting the right NMRV Worm Gearbox requires checking ratio, torque, motor power, frame size, shaft configuration, and mounting position. Proper selection improves reliability and reduces overheating or mismatch risks.
HUAKE Gearbox provides NMRV worm reducers for compact right-angle transmission. Its product range supports multiple ratios, frame sizes, mounting options, and industrial applications.
A: An NMRV Worm Gearbox provides compact right-angle speed reduction for industrial transmission systems.
A: Choose an NMRV Worm Gearbox by ratio, torque, motor power, frame size, and mounting.
A: Select an NMRV Worm Gearbox ratio from motor speed and required output speed.
A: Price depends on size, ratio, motor power, output configuration, and mounting options.
A: High loads, poor lubrication, incorrect mounting, or continuous operation can increase heat.
A: Divide motor speed by the selected worm gearbox ratio.
