A gear reducer is a mechanical transmission device that lowers rotational speed while increasing usable output torque. It is commonly installed between an electric motor and driven equipment such as conveyors, mixers, lifting systems, production machinery, and automated equipment.
Most industrial motors rotate much faster than the machine they drive. A reducer solves this mismatch by transmitting power through gears with different tooth counts or diameters. As the gears reduce speed, torque increases, allowing the motor to move heavier loads at a controlled operating speed.
Different reducer types use different mechanical arrangements, but the basic principle is similar: convert high-speed motor rotation into lower-speed, higher-torque output. HUAKE provides several reducer technologies, including helical, bevel, worm, planetary, cycloidal, and cylindrical gear reducers for different industrial transmission requirements.
The simplest way to understand a reducer is to look at two meshing gears. If a small driving gear turns a larger driven gear, the larger gear rotates more slowly because it has more teeth to move through before completing one revolution.
For example, a 20-tooth input gear driving a 60-tooth output gear creates a 3:1 reduction ratio. If the input shaft rotates at 1,500 rpm, the theoretical output speed becomes approximately 500 rpm. At the same time, the output shaft gains mechanical advantage and can deliver more torque.
The reducer does not create additional power. Some energy is lost through gear friction, bearings, seals, and lubricant movement, so actual output torque is lower than the theoretical value. The gearbox housing keeps gears and shafts aligned while bearings and lubricant support stable, reliable operation.
| Parameter | Example |
|---|---|
| Motor Speed | 1,500 rpm |
| Driving Gear Teeth | 20 |
| Driven Gear Teeth | 60 |
| Reduction Ratio | 3:1 |
| Theoretical Output Speed | 500 rpm |
| Output Torque | Increased after reduction |
Gear ratio describes the relationship between input speed and output speed. A 10:1 reducer means the input shaft rotates approximately ten times for every one revolution of the output shaft.
The basic formula is:
Gear Ratio = Input Speed ÷ Output Speed
If a motor runs at 1,500 rpm and the machine needs an output speed of 50 rpm, the theoretical ratio is approximately 30:1. A higher ratio generally creates a lower output speed.
| Input Speed | Required Output Speed | Approximate Ratio |
|---|---|---|
| 1,500 rpm | 500 rpm | 3:1 |
| 1,500 rpm | 150 rpm | 10:1 |
| 1,500 rpm | 75 rpm | 20:1 |
| 1,500 rpm | 50 rpm | 30:1 |
Ratio alone is not enough for final selection. Engineers must also check torque, motor power, maximum input speed, thermal capacity, operating hours, and the load characteristics of the machine.

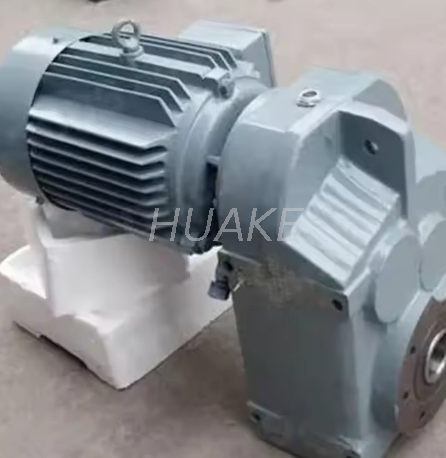

HUAKE's F Series Parallel Shaft Helical Gearmotor uses multi-stage helical gearing to provide different reduction ratios for industrial power-transmission applications.
A reducer increases torque because it trades rotational speed for turning force. When the output shaft rotates more slowly than the input shaft, the available output torque increases according to the gear ratio and gearbox efficiency.
A simplified calculation is:
Estimated Output Torque = Input Torque × Ratio × Efficiency
For example, if a motor produces 20 N·m of torque and drives a 10:1 reducer with an assumed efficiency of 95%, the estimated output torque would be about 190 N·m.
| Parameter | Example |
|---|---|
| Input Torque | 20 N·m |
| Reduction Ratio | 10:1 |
| Assumed Efficiency | 95% |
| Ideal Torque | 200 N·m |
| Estimated Output Torque | 190 N·m |
This does not mean the gearbox can transmit unlimited torque. Gear teeth, shafts, bearings, housing strength, and thermal capacity all impose mechanical limits. Peak loads during startup, machine jams, or sudden impacts should also be considered separately from normal running torque.
A multi-stage reducer uses several successive gear reductions when one gear pair cannot provide the required total ratio efficiently or within a practical gearbox size.
Suppose the first gear stage has a 3:1 ratio and the second stage has a 4:1 ratio. The total ratio becomes:
3 × 4 = 12:1
| Stage | Ratio |
|---|---|
| First Stage | 3:1 |
| Second Stage | 4:1 |
| Total Reduction | 12:1 |
Multi-stage designs allow large ratios without requiring one extremely large gear. They are common in helical, planetary, bevel, worm, and other industrial reducers.
However, every additional stage adds gear contacts, bearings, friction, weight, and manufacturing complexity. It can also slightly reduce overall efficiency. Engineers therefore try to achieve the required ratio with a practical number of stages rather than simply adding more gears.
Different reducer types all reduce speed, but the internal transmission mechanisms are different.
Helical reducers use gears with angled teeth. The teeth engage progressively rather than making contact all at once, which helps produce smooth power transmission and relatively low vibration.
They are widely used for conveyors, mixers, processing machinery, and continuous-duty industrial equipment. Helical gearing is especially suitable where efficiency and long operating hours are important.
Parallel-shaft designs place the input and output shafts parallel to each other, while inline versions keep them on approximately the same centerline.
A bevel reducer uses bevel or spiral bevel gears to change the direction of power transmission. Input and output shafts are commonly arranged at approximately 90 degrees.
This makes bevel reducers useful where machine layout requires a right-angle drive but efficiency remains important. HUAKE's KA47 Spiral Bevel Gear Reducer is designed for compact right-angle transmission in applications such as conveyors, packaging machinery, mixers, and automation equipment.
A worm reducer uses a screw-like worm shaft that meshes with a larger worm wheel. As the worm rotates, it slowly turns the wheel, producing a high reduction ratio in a compact right-angle configuration.

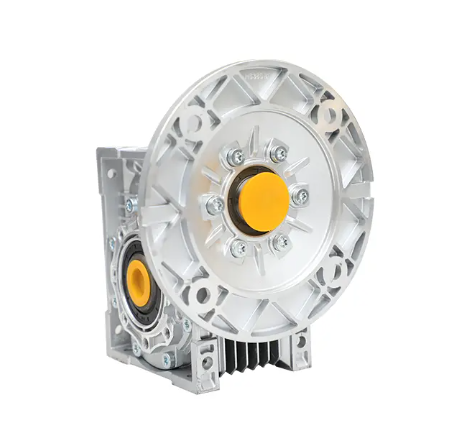

HUAKE's Compact Aluminum NMRV Worm Gearbox is an example of this transmission structure.
Worm reducers are compact and can provide high reduction ratios, but their sliding gear contact can produce more heat and lower efficiency than many helical or bevel designs. Lubrication and thermal capacity are therefore especially important.
A planetary reducer contains a central sun gear, several planet gears, a planet carrier, and an outer ring gear. The planet gears share the transmitted load, which allows relatively high torque to be handled within a compact gearbox.
This structure is widely used in servo systems, automation equipment, machine tools, and other applications requiring compact size and good torque density.
Precision planetary reducers can also be manufactured with low backlash for accurate positioning and repeated reversing motion.
A cycloidal reducer uses an eccentric input mechanism to move one or more cycloidal discs against surrounding pins or rollers. The difference between the disc profile and pin arrangement creates a large reduction ratio.
Because multiple contact points transmit the load simultaneously, cycloidal reducers can provide strong shock-load resistance and high torque capacity. Precision RV designs are widely used in robot joints and automation.
HUAKE's Precision RV Cycloidal Gear Reducer for Robot Joints is designed for applications where compact size, high rigidity, and precise transmission are required.
A reducer changes speed and torque, but it does not increase the total mechanical power supplied by the motor. Actual output power is always slightly lower than input power because the transmission has mechanical losses.
These losses mainly come from gear friction, bearing resistance, shaft seals, and lubricant movement.
| Energy Path | Effect |
|---|---|
| Gear Transmission | Produces useful output rotation |
| Gear Friction | Generates heat |
| Bearing Resistance | Generates heat |
| Seal Friction | Creates minor power loss |
| Oil Churning | Produces drag and heat |
| Misalignment | Increases wear and energy loss |
This is why reducer efficiency matters, particularly on continuously operating industrial equipment. A small difference in efficiency can become significant over thousands of operating hours.
Gears cannot work correctly unless their shafts remain accurately aligned. Bearings support these shafts and control both radial and axial loads inside the reducer.
Helical gears generate axial thrust because of their angled teeth. Bevel and worm gears also create characteristic forces that the bearing arrangement must support. If bearings wear or become overloaded, gear alignment can deteriorate, resulting in noise, vibration, heat, and tooth damage.
Lubrication is equally important. Gear oil or grease forms a protective film between moving surfaces, reduces friction, removes heat, and protects bearings and gear teeth from wear.
The correct lubricant viscosity depends on gearbox design, operating speed, load, and temperature. Oil levels also need to match the gearbox mounting orientation because horizontal and vertical installations may require different lubrication conditions.
Industrial reducers rarely operate under a perfectly constant load. A conveyor may require much more torque during startup than during normal operation. A mixer may experience changing resistance as material viscosity changes, while crushers and processing equipment may experience sudden shock loads.
These conditions place temporary high stresses on gears, bearings, shafts, and couplings. The reducer must therefore be selected for both normal torque and peak torque.
| Load Condition | Main Concern |
|---|---|
| Continuous Load | Normal torque and heat |
| Starting Load | Higher startup torque |
| Shock Load | Gear and shaft stress |
| Reversing Load | Backlash and fatigue |
| Variable Load | Changing torque and temperature |
| Radial Load | Output bearing capacity |
| Axial Load | Bearing and shaft support |
A service factor is often applied during gearbox selection to account for operating conditions that are more severe than a perfectly steady load.
Reducers can also change the direction or position of the drivetrain.
Inline helical and planetary reducers usually keep the input and output shafts on the same centerline. Parallel-shaft helical reducers place the shafts parallel to one another. Bevel and worm reducers commonly provide right-angle transmission.
This flexibility helps machine designers position motors according to available space. For example, a right-angle reducer can allow the motor to sit beside a conveyor rather than extending beyond the end of the machine.
Shaft arrangement should therefore be considered early in equipment design because changing from an inline reducer to a right-angle model usually requires a different gearbox family.
Some heat during operation is normal because no mechanical transmission is completely efficient. Excessive temperature, however, can indicate a problem.
Common causes include:
Excessive machine load
Incorrect oil level
Wrong lubricant viscosity
Excessive input speed
Poor ventilation around the housing
High ambient temperature
Bearing damage
Shaft misalignment
Continuous operation beyond thermal capacity
Worm gear reducers often require particular attention to temperature because sliding contact between the worm and wheel can generate more friction than rolling gear contact.
Unexpected temperature increases should therefore be investigated instead of being treated as normal gearbox behavior.
The correct reducer should match the mechanical transformation required between the motor and the machine.
Start with motor speed and required output speed to calculate the approximate ratio. Then determine continuous torque, startup torque, shock loading, operating hours, and shaft arrangement.
| Selection Parameter | What to Define |
|---|---|
| Motor Power | kW or HP |
| Input Speed | Normal and maximum rpm |
| Output Speed | Required machine rpm |
| Ratio | Input speed ÷ output speed |
| Continuous Torque | Normal machine load |
| Peak Torque | Startup or impact load |
| Duty Cycle | Continuous or intermittent |
| Shaft Layout | Inline, parallel, right-angle |
| Backlash | Precision requirement |
| Mounting | Foot, flange, shaft-mounted |
| Environment | Dust, humidity, heat, corrosion |
A continuously running conveyor may favor a helical reducer because efficiency is important. A compact right-angle machine may use a worm or bevel reducer. Servo equipment may require a planetary gearbox, while robotic joints may favor a precision RV cycloidal reducer.
Understanding how each reducer works helps prevent selecting a gearbox only by ratio or motor power.
Reducer faults usually appear as excessive noise, vibration, heat, oil leakage, reduced torque, or irregular motion.
| Symptom | Possible Cause | First Check |
|---|---|---|
| High Temperature | Overload or lubrication issue | Load and oil level |
| Abnormal Noise | Gear or bearing wear | Bearings and gears |
| Vibration | Misalignment or loose mounting | Couplings and bolts |
| Oil Leakage | Worn seal or pressure issue | Seals and breather |
| Low Output Torque | Overload or drive problem | Motor and load |
| Excessive Backlash | Wear or wrong gearbox type | Gear condition |
A troubleshooting inspection should consider the complete drivetrain. Problems may originate from the motor, coupling, driven equipment, or mounting rather than from the reducer itself.
Keeping records of gearbox temperature, vibration, lubricant condition, and operating load can make developing problems easier to identify.
HUAKE provides several reducer technologies for different industrial transmission requirements. Helical reducers can support continuous-duty conveyors and processing machinery where efficient transmission is important. Bevel reducers provide compact right-angle layouts for packaging, material handling, and other machinery.
Worm reducers offer flexible ratios and compact right-angle transmission for general industrial equipment. Planetary gear reducers can support automation and servo applications that require high torque density and controlled backlash. Precision RV cycloidal reducers are suitable for robotic joints and other applications requiring high rigidity and compact high-ratio transmission.
HUAKE also provides cylindrical and other industrial gearbox solutions for heavier mechanical loads. This product range allows buyers to select the transmission mechanism according to speed, torque, installation space, precision, and operating duty rather than using one gearbox type for every application.
When requesting a reducer, buyers should provide motor power, input speed, required output speed, continuous and peak torque, operating hours, mounting position, shaft configuration, and environmental conditions. Complete application data makes reducer selection more accurate and reduces the risk of oversizing or premature failure.
A reducer works by converting high-speed motor rotation into lower-speed, higher-torque output through gears or other mechanical reduction mechanisms. The gear ratio determines how much the speed is reduced, while transmission efficiency affects the actual torque delivered to the machine.
Helical, bevel, worm, planetary, and cycloidal reducers achieve this function through different internal structures. Their differences affect efficiency, shaft arrangement, ratio capability, precision, heat generation, and load capacity.
Bearings keep shafts aligned, while lubrication controls friction and protects gears from wear. Correct gearbox operation also depends on proper load sizing, mounting, temperature control, and maintenance.
HUAKE provides several reducer designs that can be matched to different industrial power-transmission requirements. The correct reducer is therefore the one whose working principle, ratio, torque capacity, shaft arrangement, and duty characteristics best match the actual machine.
A gear reducer reduces speed by transmitting rotation between gears with different sizes or numbers of teeth. When a smaller driving gear turns a larger driven gear, the larger gear rotates more slowly. The difference in speed creates the reduction ratio. Multi-stage reducers repeat this process through several gear pairs when a larger ratio is required.
A reducer exchanges rotational speed for turning force. As output speed decreases, available output torque increases according to the ratio and transmission efficiency. The reducer does not create extra power, and actual output torque is limited by mechanical losses and the rated capacity of the gearbox.
No. The motor supplies the input power. A reducer changes the relationship between speed and torque but cannot create additional power. Actual output power is slightly lower because friction and other mechanical losses generate heat.
A worm reducer uses a screw-like worm shaft to turn a larger worm wheel. The wheel rotates much more slowly than the worm, creating a compact high-ratio reduction. The shafts are normally arranged at approximately 90 degrees.
A planetary reducer uses a central sun gear, several planet gears, and an outer ring gear. The load is distributed across several gear contacts, which allows high torque density in a compact gearbox. Precision versions are widely used with servo motors.
Common causes include overload, excessive input speed, incorrect lubricant, low or excessive oil level, poor ventilation, bearing problems, and shaft misalignment. Continuous operation beyond the gearbox's thermal capacity can also produce excessive temperature.
Divide input speed by the reduction ratio. For example, a motor operating at 1,500 rpm with a 30:1 reducer produces a theoretical output speed of approximately 50 rpm.
Provide motor power, input speed, required output speed, continuous torque, peak load, operating hours, mounting orientation, shaft arrangement, precision requirements, and environmental conditions. These parameters allow HUAKE to match the gearbox structure and size more accurately to the application.
